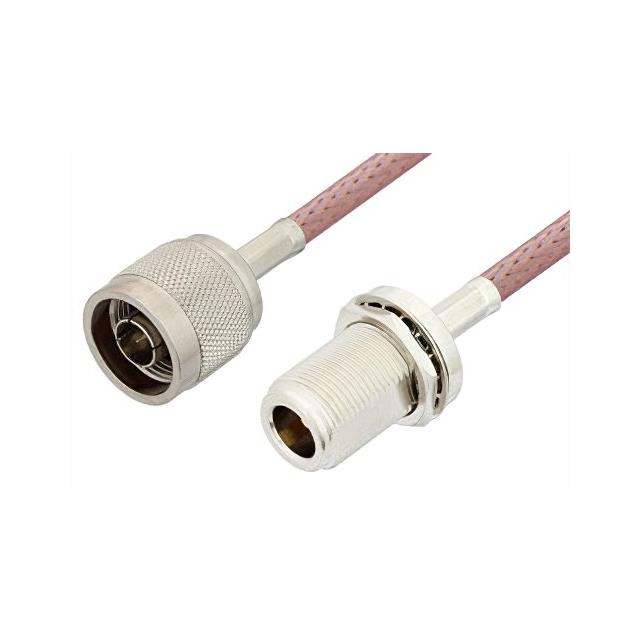

PE3034-12
ActivePasternack
N MALE TO N FEMALE BULKHEAD CABL
PE3034-12
ActivePasternack
N MALE TO N FEMALE BULKHEAD CABL
Description
General part information
PE3034-12
Cable Assembly Coaxial N-Type to N-Type RG-142 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3034-12 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
