Specification	FH23-25S-0.3SHW(05)

Actuator Material	Halogen Free, Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.049 in
Housing Material	LCP, Liquid Crystal Polymer, Halogen Free
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	25
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.012 in
Termination	Solder
Voltage Rating	30 V

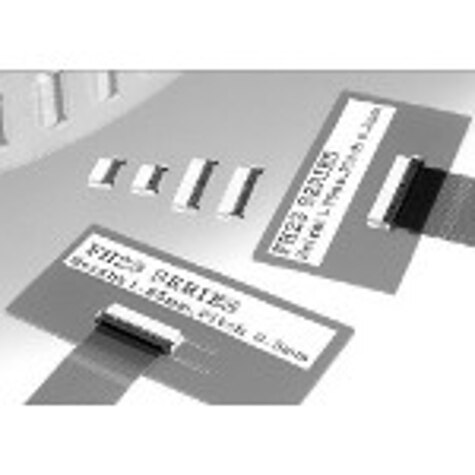

FH23 Series

FFC & FPC Connectors 0.3MM 25 POS R/A SMT GOLD FLASH PLATING

Part	FFC, FCB Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Material	Flat Flex Type	Features	Number of Positions	Pitch	Locking Feature	Termination	Connector/Contact Type	Contact Finish	Actuator Material	Housing Material	Cable End Type	Voltage Rating	Mounting Type	Height Above Board	Housing Color	Actuator Color	Mating Cycles	Current Rating
Hirose Electric Co Ltd FH23-51S-0.3SHW(06)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	51	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Liquid Crystal Polymer (LCP)	LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-51S-0.3SHAW(06)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	51	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Liquid Crystal Polymer (LCP)	LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-45S-0.3SHAW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	45	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-37S-0.3SHW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	37 pos	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-23S-0.3SHAW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	23	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-33S-0.3SHAW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	33	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-31S-0.3SHAW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	31	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-61S-0.3SHAW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	61	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-21S-0.3SHAW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	21	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
Hirose Electric Co Ltd FH23-25S-0.3SHAW(05)	0.2 mm	-55 °C	85 °C	UL94 V-0	Phosphor Bronze	FPC	Low Insertion Force (LIF)	25	0.012 in	Flip Lock	Solder	Bottom Contacts	Gold	Halogen Free Liquid Crystal Polymer (LCP)	Halogen Free LCP Liquid Crystal Polymer	Tapered	30 V	Right Angle Surface Mount	0.049 in	Beige	Black	10 cycles	0.3 A
