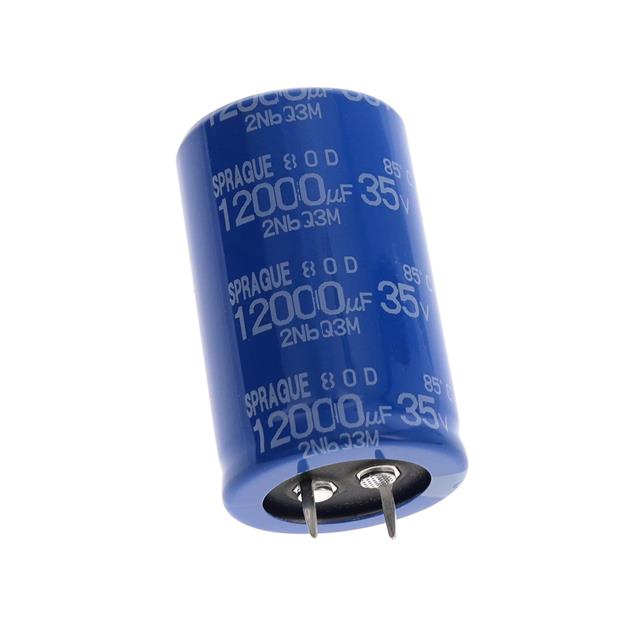

Specification	80D123P035KE2DE3

Applications	General Purpose
Capacitance	12000 µF
ESR (Equivalent Series Resistance)	33 mOhm
Height - Seated (Max)	2.047 in
Lead Spacing	0.394 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	7.2 A, 6.2 A
Size / Dimension Diameter	1.181 in
Tolerance (Negative)	10 %
Tolerance (Positive)	30 %
Voltage - Rated	35 V
