TLF9UA302WR42K1
ObsoleteTaiyo Yuden
CMC 3MH 420MA 2LN TH
TLF9UA302WR42K1
ObsoleteTaiyo Yuden
CMC 3MH 420MA 2LN TH
Description
General part information
TLF9UA302WR42K1

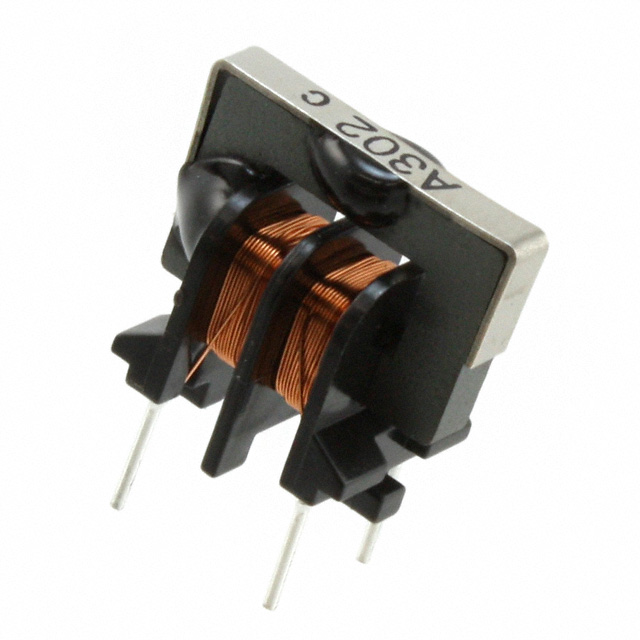

3 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 420mA DCR 1.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | TLF9UA302WR42K1 |
|---|---|
| Current Rating (Max) | 420 mA |
| DC Resistance (DCR) (Max) | 1.5 Ohm |
| Filter Type | Power Line |
| Height (Max) | 0.63 in |
| Inductance | 3 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.669 in |
| Size / Dimension Width | 0.433 in |
| Voltage Rating - AC | 250 V |
