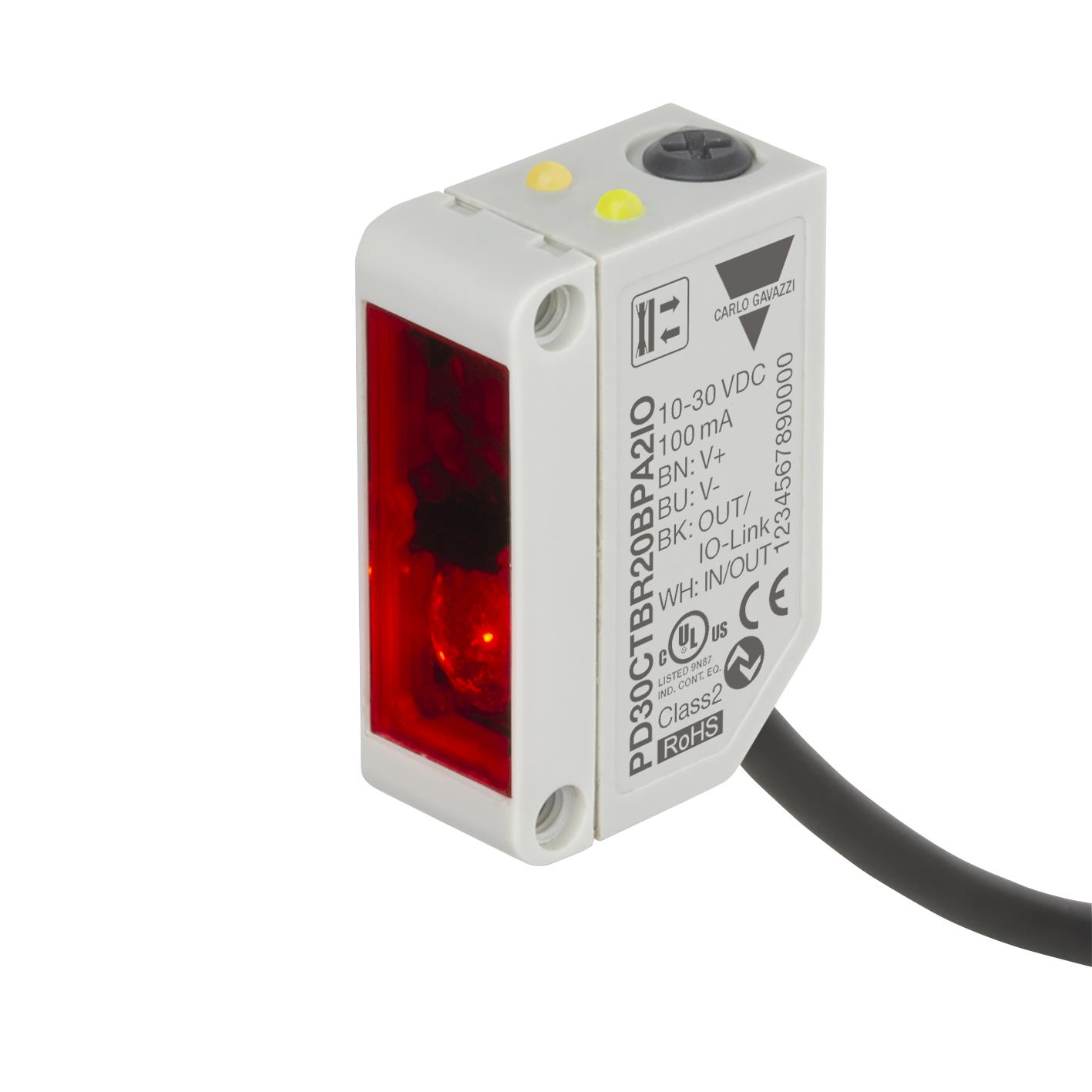

PD30CTBR20BPA2IO
ActiveCarlo Gavazzi Inc.
SENSOR: PHOTOELECTRIC; RANGE: 200MM; PNP/NPN NO/NC; USUP: 10÷30VDC
PD30CTBR20BPA2IO
ActiveCarlo Gavazzi Inc.
SENSOR: PHOTOELECTRIC; RANGE: 200MM; PNP/NPN NO/NC; USUP: 10÷30VDC
Description
General part information
PD30CTBR20BPA2IO
Background Suppression Optical Sensor 7.874" (200mm) Push-Pull, NPN/PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | PD30CTBR20BPA2IO |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 620 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP, NPN, Push-Pull |
| Response Time | 1 ms |
| Sensing Distance | 7.874 " |
| Sensing Method | Background Suppression |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
