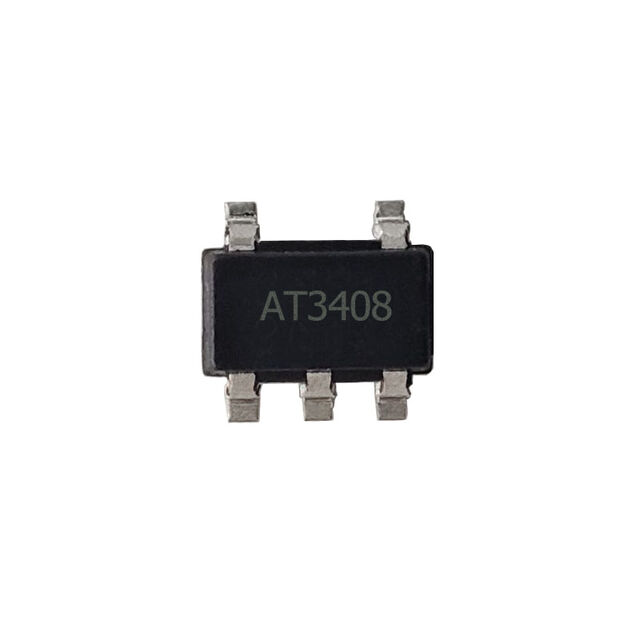

AT3408

Active

Analog Technologies, Inc.

5.5V 1A 1.5MHZ 5.5V SYNCHRONOUS

Search across all available documentation for this part.

Active

Analog Technologies, Inc.

5.5V 1A 1.5MHZ 5.5V SYNCHRONOUS

Technical Specifications

Parameters and characteristics for this part

5.5V 1A 1.5MHZ 5.5V SYNCHRONOUS

Part	Output Type	Package / Case	Voltage - Output (Min/Fixed)	Synchronous Rectifier	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output	Topology	Output Configuration	Number of Outputs	Mounting Type	Voltage - Output (Max) [Max]	Frequency - Switching	Function	Voltage - Input (Min) [Min]	Supplier Device Package
Analog Technologies, Inc. AT3408	Adjustable	SC-74A, SOT-753	0.6 V		85 °C	-40 °C	5.5 V	1 A	Buck	Positive	1	Surface Mount	5.5 V	1.5 MHz	Step-Down	2.5 V	SOT-23-5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A SC-74A, SOT-753
