74LVC10ADB,112

Active

Nexperia USA Inc.

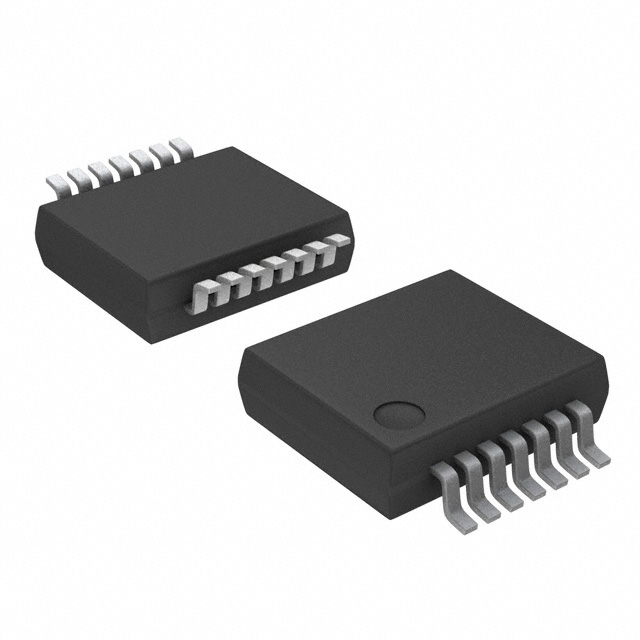

IC GATE NAND 3CH 3-INP 14SSOP

Search across all available documentation for this part.

Active

Nexperia USA Inc.

IC GATE NAND 3CH 3-INP 14SSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	74LVC10ADB,112	74LVC10 Series

Current - Output High, Low [custom]	24 mA	24 mA
Current - Output High, Low [custom]	24 mA	24 mA
Current - Quiescent (Max) [Max]	40 µA	40 µA
Input Logic Level - High [Max]	2 V	2 V
Input Logic Level - High [Min]	1.08 V	1.08 V
Input Logic Level - Low [Max]	0.8 V	0.8 V
Input Logic Level - Low [Min]	0.12 V	0.12 V
Logic Type	NAND Gate	NAND Gate
Max Propagation Delay @ V, Max CL	5.7 ns	5.7 ns
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	3	3
Number of Inputs	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	0.209 in	0.209 in
Package / Case	14-SSOP	14-SOIC, 14-SSOP, 14-VFQFN Exposed Pad
Package / Case	5.3 mm	0.154 - 5.3 in
Package / Case	-	3.9 mm
Supplier Device Package	14-SSOP	14-SO, 14-SSOP, 14-DHVQFN (2.5x3)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.2 V	1.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC GATE NAND 3CH 3-INP 14SO

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Max Propagation Delay @ V, Max CL	Current - Quiescent (Max) [Max]	Number of Inputs	Voltage - Supply [Min]	Voltage - Supply [Max]	Logic Type	Supplier Device Package	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Number of Circuits	Mounting Type	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Package / Case
Nexperia USA Inc. 74LVC10AD,118 NAND Gate IC 3 Channel 14-SO	125 °C	-40 °C	3.9 mm	0.154 in	14-SOIC	24 mA	24 mA	5.7 ns	40 µA	3	1.2 V	3.6 V	NAND Gate	14-SO	0.12 V	0.8 V	3	Surface Mount	2 V	1.08 V
Nexperia USA Inc. 74LVC10ADB,112 NAND Gate IC 3 Channel 14-SSOP	125 °C	-40 °C		5.3 mm	14-SSOP	24 mA	24 mA	5.7 ns	40 µA	3	1.2 V	3.6 V	NAND Gate	14-SSOP	0.12 V	0.8 V	3	Surface Mount	2 V	1.08 V	0.209 in
Nexperia USA Inc. 74LVC10AD,112 NAND Gate IC 3 Channel 14-SO	125 °C	-40 °C	3.9 mm	0.154 in	14-SOIC	24 mA	24 mA	5.7 ns	40 µA	3	1.2 V	3.6 V	NAND Gate	14-SO	0.12 V	0.8 V	3	Surface Mount	2 V	1.08 V
Nexperia USA Inc. 74LVC10ABQ,115 NAND Gate IC 3 Channel 14-DHVQFN (2.5x3)	125 °C	-40 °C			14-VFQFN Exposed Pad	24 mA	24 mA	5.7 ns	40 µA	3	1.2 V	3.6 V	NAND Gate	14-DHVQFN (2.5x3)	0.12 V	0.8 V	3	Surface Mount	2 V	1.08 V

General part information

NAND Gate IC 3 Channel 14-SSOP
