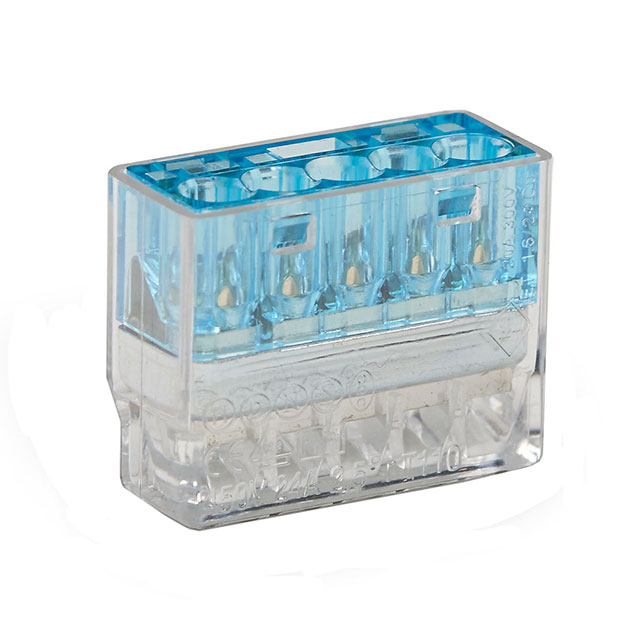

CR2097-000
ActiveTE Connectivity AMP Connectors
CPGI-WC-PG-5-PORT-BULK
Deep-Dive with AI
Search across all available documentation for this part.
CR2097-000
ActiveTE Connectivity AMP Connectors
CPGI-WC-PG-5-PORT-BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CR2097-000 | CR20 Series |
|---|---|---|
| Color | Blue | Blue |
| Insulation | Fully Insulated | Fully Insulated |
| Number of Wire Entries | 5 | 3 - 5 |
| Terminal Type | Individual Openings, Closed End, Butt Splice | Individual Openings, Closed End, Butt Splice |
| Termination | Push In | Push In |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
CR20 Series
CPGI-WC-PG-3-PORT-BULK
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Number of Wire Entries | Insulation | Termination | Color |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CR2094-000 | 12 AWG | 22 AWG | Butt Splice, Closed End, Individual Openings | 3 | Fully Insulated | Push In | |
TE Connectivity AMP Connectors CR2097-000 | 12 AWG | 22 AWG | Butt Splice, Closed End, Individual Openings | 5 | Fully Insulated | Push In | Blue |
Description
General part information
CR20 Series
Terminal Butt Splice, Closed End, Individual Openings Connector Push In 12-22 AWG Blue
