EC12D1524406
ActiveALPS ALPINE CO., LTD

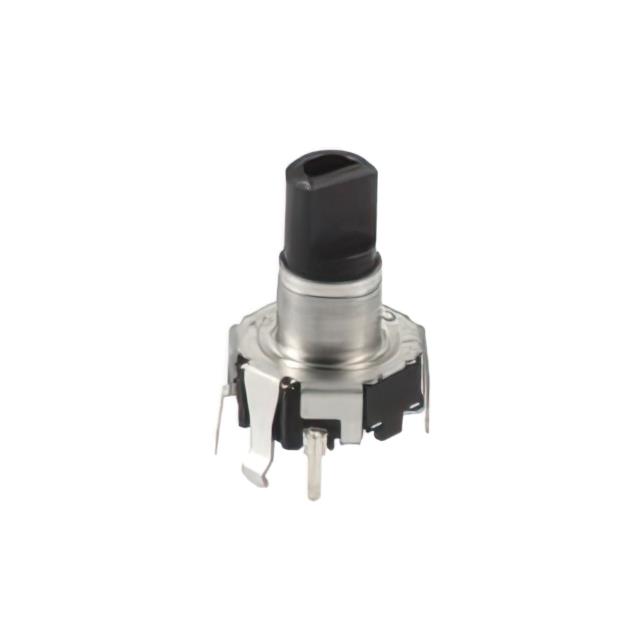

ENCODER, VERTICAL, 12MM, 30DET,15PPR
EC12D1524406
ActiveALPS ALPINE CO., LTD
ENCODER, VERTICAL, 12MM, 30DET,15PPR
Description
General part information
EC12D1524406
Rotary Encoder Incremental 15 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | EC12D1524406 |
|---|---|
| Actuator Type | 12mm Dia Knurled End |
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Incremental |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 15 |
| Rotational Life (Cycles Min) | 30 K |
| Termination Style | PC Pin |
| Voltage - Supply | 5 VDC |
