BOS 758
ActiveBopla Enclosures
BOX ABS BLACK 6.18"L X 3.31"W
BOS 758
ActiveBopla Enclosures
BOX ABS BLACK 6.18"L X 3.31"W
Description
General part information
BOS 758

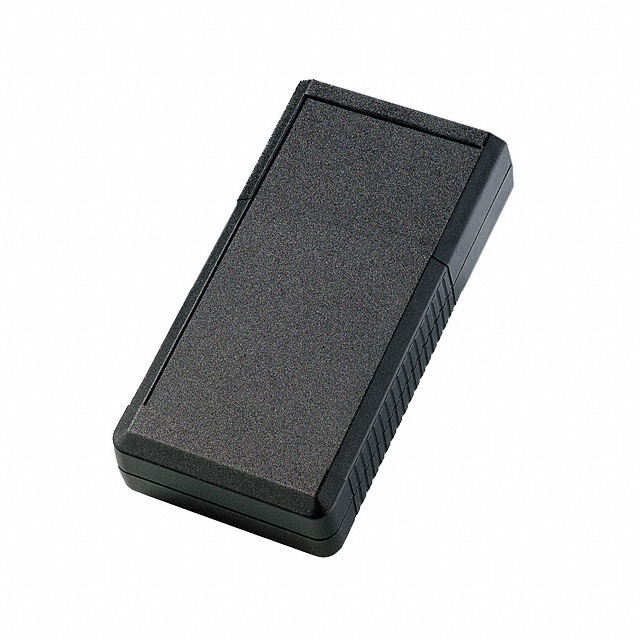

Box Plastic, ABS Black Hand Held, Split Sides 6.181" L x 3.307" W (157.00mm x 84.00mm) X 1.181" (30.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | BOS 758 |
|---|---|
| Area (L x W) | 20.4 in² |
| Color | Black |
| Container Type | Box |
| Design | Split Sides, Hand Held |
| Features | Battery Compartment, 9V, PCB Supports |
| Height | 1.181 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40 |
| Size / Dimension Length | 6.181 in |
| Size / Dimension Width | 3.307 in |
| Thickness | 0.197 in |
| Weight | 0.232 lb |
