Description
General part information

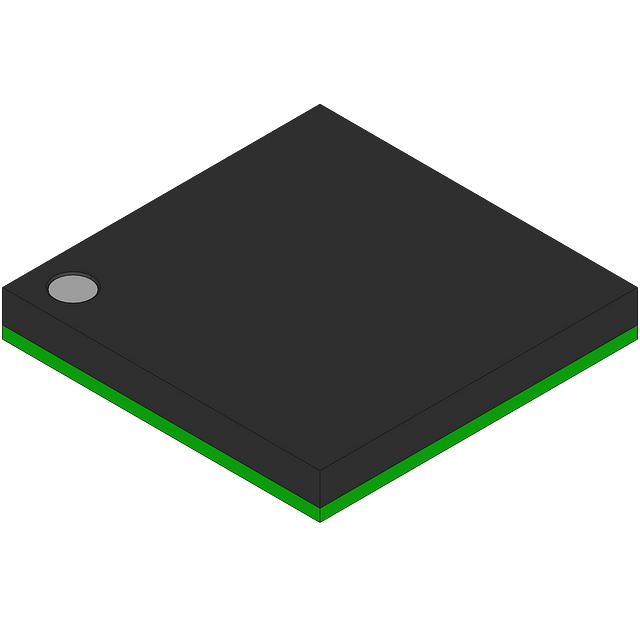

RU82566MM
1/1 Transceiver Full, Half IEEE 802.3 81-BGA (10x10)
Technical Specifications
Parameters and characteristics for this part
| Specification | RU82566MM |
|---|---|
| Data Rate | 100 Mbps, 1000 Mbps, 10 Mbps |
| Data Rate | 10Mbps, 1Gbps, 100Mbps |
| Duplex | Half, Full |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 81-BGA |
| Package Length | 10 mm |
| Package Name | 81-BGA |
| Package Width | 10 mm |
| Protocol | IEEE 802.3 |
| Receiver Hysteresis | 160 mV |
| Type | Transceiver |
| Voltage - Supply (Range 1 Maximum) | 1.05 V |
| Voltage - Supply (Range 1 Minimum) | 0.95 V |
| Voltage - Supply (Range 2 Maximum) | 1.89 V |
| Voltage - Supply (Range 2 Minimum) | 1.71 V |
| Voltage - Supply (Range 3 Maximum) | 3.6 V |
| Voltage - Supply (Range 3 Minimum) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
