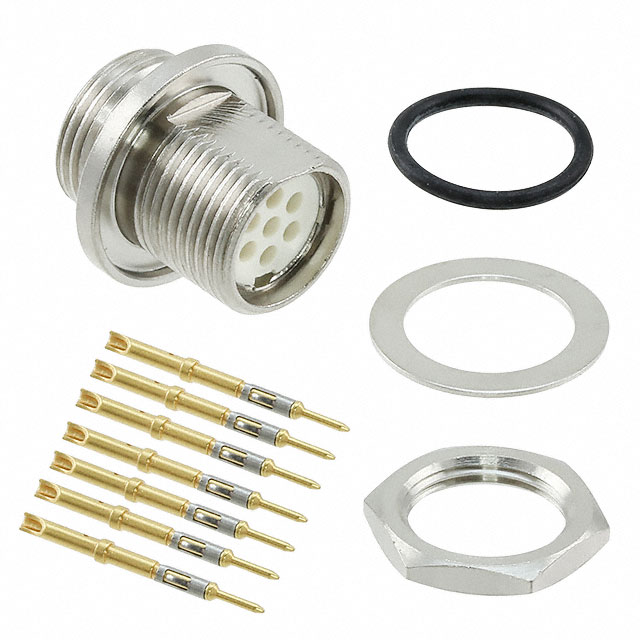

Specification	TS2P7M26

Applications	General, Audio, Testing Equipment & Measurement, Medical, Agriculture
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Threaded
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP66, IP67, IP68
Insert Material	LCP, Liquid Crystal Polymer
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	7
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp or Solder Cup
Voltage Rating	30 V
Voltage Rating (Type)	DC, AC

TS Series

Part	Mounting Feature	Termination	Insert Material	Mounting Type	Fastening Type	Contact Finish - Mating	Color	Shielding	Applications	Primary Material	Connector Type	Current Rating	Shell Material	Number of Positions	Orientation	Voltage Rating	Voltage Rating (Type)	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Plating	Backshell Material	Cable Opening (Max)	Cable Opening (Min)	Features	For Use With/Related Products	Accessory Type	2nd Connector	2nd Connector Diameter	2nd Connector Count	1st Connector	1st Connector Size	1st Connector Quantity	Channels (Configuration)	Length	Usage
SWITCHCRAFT/CONXALL TS2P9M26-B	Bulkhead Front Side Nut	Solder	LCP Liquid Crystal Polymer	Panel Mount Through Hole	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Male Pins Receptacle	2 A	Copper Alloy	9	Keyed	30 V	AC DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68
SWITCHCRAFT/CONXALL TS2C3F20C		Crimp or Solder Cup	LCP Liquid Crystal Polymer	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Female Sockets Plug		Copper Alloy	3	Keyed	125 V	DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Nickel	Copper Alloy	0.216 in	0.18 in	Backshell Coupling Nut
SWITCHCRAFT/CONXALL TS2CCAP							Black																					Dust Tight Water Resistant Waterproof	Cable Plug	Cap (Cover) Sealing
SWITCHCRAFT/CONXALL TS2P4M20	Bulkhead Rear Side Nut	Crimp or Solder Cup	LCP Liquid Crystal Polymer	Panel Mount	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Male Pins Receptacle		Copper Alloy	4	Keyed	125 V	DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68
SWITCHCRAFT/CONXALL TS2P8M26-BP	Bulkhead Front Side Nut	Solder	LCP Liquid Crystal Polymer	Panel Mount Through Hole	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Male Pins Receptacle		Copper Alloy	8	Keyed	30 V	AC DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68
SWITCHCRAFT/CONXALL TS2C5M20B		Crimp or Solder Cup	LCP Liquid Crystal Polymer	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Male Pins Plug	10 A	Copper Alloy	5	Keyed	125 V	DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Nickel	Copper Alloy	0.197 in	0.142 in	Backshell Coupling Nut
SWITCHCRAFT/CONXALL TS10TS							Purple																								(1/4" 0.25") Phone Plug	6.35 mm	8 pcs	Phone Plug	6.35 mm	8	Mono	10 ft	Headphones Patch Cable
SWITCHCRAFT/CONXALL TS2C6F26A		Crimp or Solder Cup	LCP Liquid Crystal Polymer	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Female Sockets Plug	10 A	Copper Alloy	6	Keyed	30 V	AC DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Nickel	Copper Alloy	0.142 in	0.106 in	Backshell Coupling Nut
SWITCHCRAFT/CONXALL TS2C8F26B		Crimp or Solder Cup	LCP Liquid Crystal Polymer	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Female Sockets Plug	10 A	Copper Alloy	8	Keyed	30 V	AC DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Nickel	Copper Alloy	0.197 in	0.142 in	Backshell Coupling Nut
SWITCHCRAFT/CONXALL TS2L5M20B		Crimp or Solder Cup	LCP Liquid Crystal Polymer	Free Hanging (In-Line)	Threaded	Gold	Silver	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Male Pins Receptacle	8 A	Copper Alloy	5	Keyed	125 V	DC	135 °C	-40 °C	Copper Alloy	Electroless Nickel	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Nickel	Copper Alloy	0.197 in	0.142 in	Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
