Description
General part information

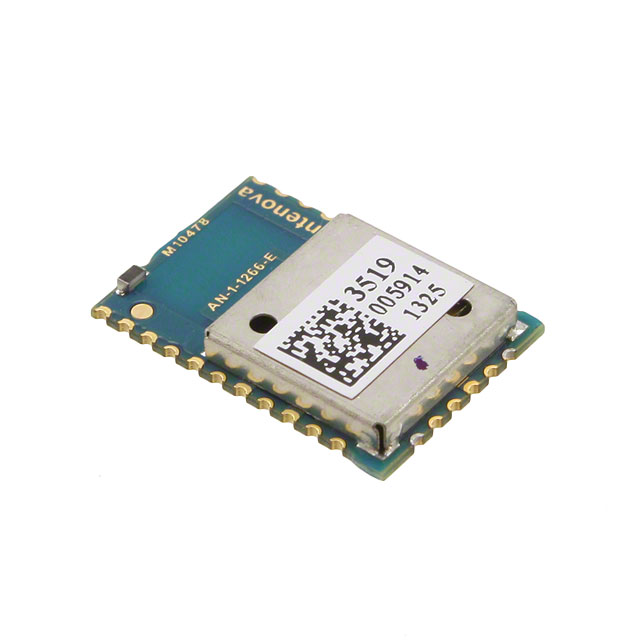

M10478-A1
RADIONOVA® RF Receiver GPS 1575.42MHz -163dBm On-Board, Chip Module
Technical Specifications
Parameters and characteristics for this part
| Specification | M10478-A1 |
|---|---|
| Antenna Connector | On-Board, Chip |
| Applications | Portable Audio/Video, Smartphones, PDA's |
| Current - Receiving | 31 mA |
| Data Interface | Pads for Pins |
| Frequency | 1575.42 MHz |
| Modulation or Protocol | GPS |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Sensitivity | -163 dBm |
| Voltage - Supply (Maximum) | 1.89 V |
| Voltage - Supply (Minimum) | 1.71 V |
