0034.5245
ObsoleteSCHURTER Inc.

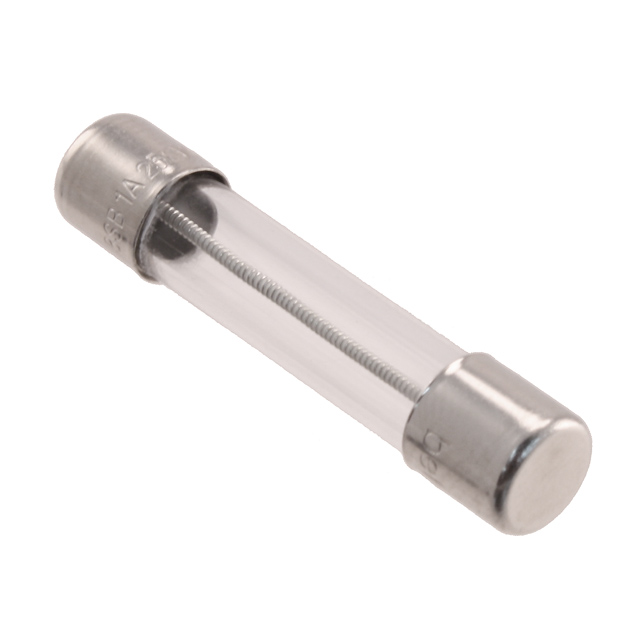

FUSE GLASS 10A 125VAC 3AB 3AG
0034.5245
ObsoleteSCHURTER Inc.
FUSE GLASS 10A 125VAC 3AB 3AG
Description
General part information
0034.5245
10 A 125 V AC DC Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | 0034.5245 |
|---|---|
| Approval Agency | UL, CSA |
| Current Rating | 10 A |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 538 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 1.25 in |
| Voltage Rating - AC | 125 V |
