MCBX3W3MG0000K/AA
ActiveMcGill Microwave Systems

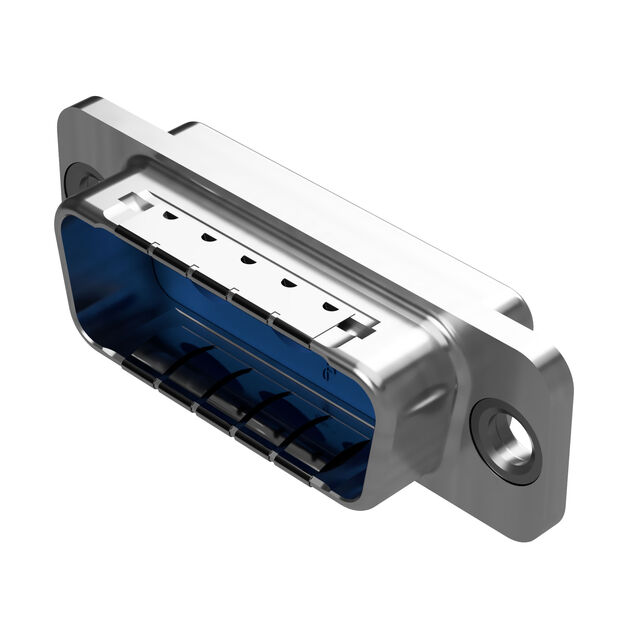

MACH-D D-SUB MALE CONNECTOR 3P C
MCBX3W3MG0000K/AA
ActiveMcGill Microwave Systems
MACH-D D-SUB MALE CONNECTOR 3P C
Description
General part information
MCBX3W3MG0000K/AA
Plug for Male Contacts Housing D-Sub, Combo Connector 3 (Power) Position
Technical Specifications
Parameters and characteristics for this part
| Specification | MCBX3W3MG0000K/AA |
|---|---|
| Color | Blue |
| Connector Layout | A, DA |
| Connector Style | Combo, D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Power |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Finish | Nickel Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 3W3 |
| Position Types | Power |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Size | 2 |
