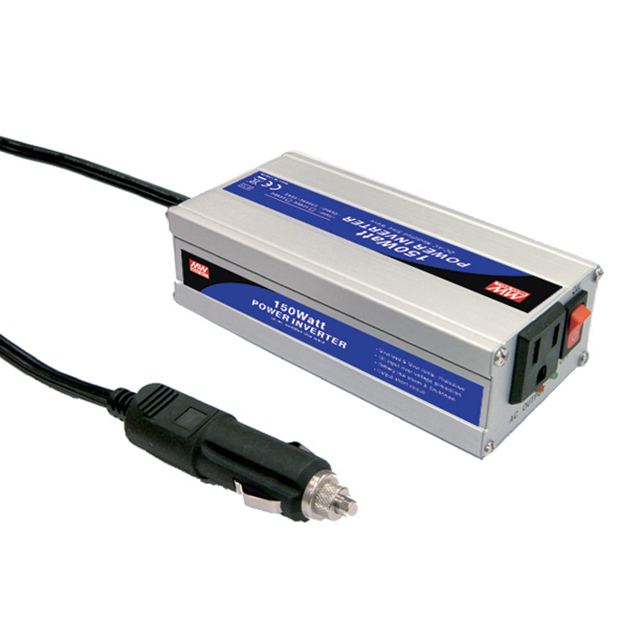

A302-150-B2
ActiveMEAN WELL USA Inc.
INVERTER 24VDC 150W 1 OUTLET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A302-150-B2
ActiveMEAN WELL USA Inc.
INVERTER 24VDC 150W 1 OUTLET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A302-150-B2 | A302-150 Series |
|---|---|---|
| AC Outlets | 1 | 1 |
| Connector - AC Output | NEMA 5-15R | NEMA 5-15R, CEE 7/3 |
| Connector - Voltage Input | Cigarette Lighter Plug | Cigarette Lighter Plug |
| Power - Output Continuous | 150 W | 150 W |
| Power - Output Surge | 300 W | 300 W |
| Region Utilized | North America | North America, Europe |
| Remote Capability | False | False |
| Size | - | 2.72 in |
| Size | - | 6.5 " |
| Size | - | 94 mm |
| Size | - | 3.7 in |
| Size | - | 165 mm |
| Size | - | 69 mm |
| Voltage - Input | 24 V | 24 V |
| Voltage - Output | 110 VAC | 110 - 230 VAC |
A302-150 Series
INVERTER 24VDC 150W 1 OUTLET
| Part | Power - Output Continuous | Voltage - Output | Connector - AC Output | Voltage - Input | AC Outlets | Connector - Voltage Input | Remote Capability | Power - Output Surge | Region Utilized | Size [z] | Size [x] | Size [y] | Size [y] | Size [x] | Size [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. A302-150-B2 | 150 W | 110 VAC | NEMA 5-15R | 24 V | 1 | Cigarette Lighter Plug | 300 W | North America | |||||||
MEAN WELL USA Inc. A302-150-F3 | 150 W | 230 VAC | CEE 7/3 | 24 V | 1 | Cigarette Lighter Plug | 300 W | Europe | 2.72 in | 6.5 " | 94 mm | 3.7 in | 165 mm | 69 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 49.12 | |
Description
General part information
A302-150 Series
24VDC Voltage Input 150 W Power Output Continuous Inverter 1 AC Outlets NEMA 5-15R North America
