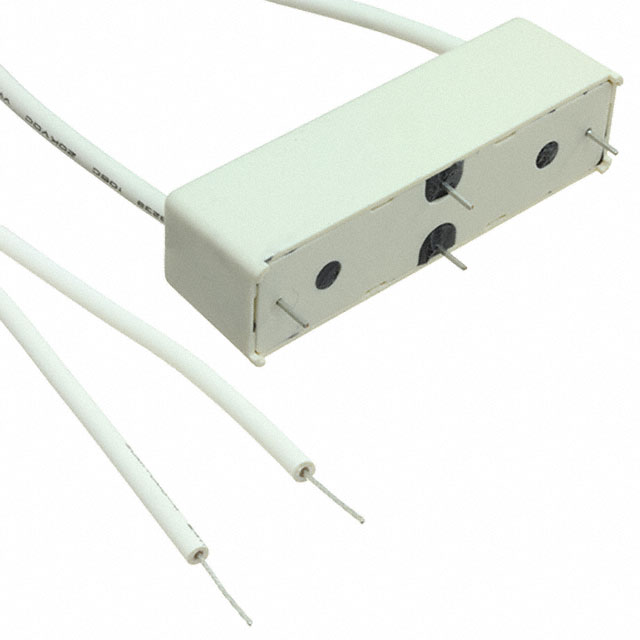

DAT70575FU
ActiveSensata Technologies
RELAY REED SPST-NO 7.5KV 5V
Deep-Dive with AI
Search across all available documentation for this part.
DAT70575FU
ActiveSensata Technologies
RELAY REED SPST-NO 7.5KV 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DAT70575FU |
|---|---|
| Coil Current | 179 mA |
| Coil Resistance | 28 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Tungsten (W) |
| Contact Rating (Current) | 2 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.7 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 2 ms |
| Switching Voltage | 5000 VAC, 5000 VDC |
| Termination Style | PC Pin, Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.46 | |
| 10 | $ 57.54 | |||
| 50 | $ 55.03 | |||
| 100 | $ 53.22 | |||
Description
General part information
DAT70575 Series
RELAY REED SPST-NO 7.5KV 5V
Documents
Technical documentation and resources
No documents available
