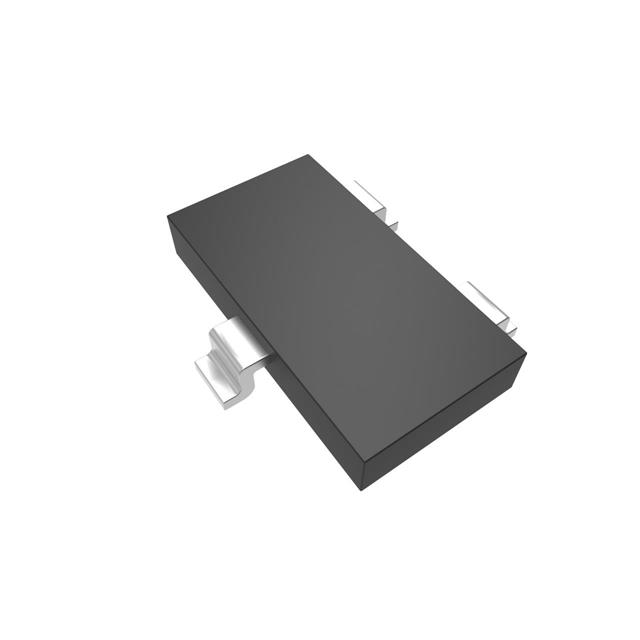

MC6225K3-1.8-TP
ActiveMCC (Micro Commercial Components)
IC REG LIN 1.8V 500MA SOT23-3L
MC6225K3-1.8-TP
ActiveMCC (Micro Commercial Components)
IC REG LIN 1.8V 500MA SOT23-3L
Description
General part information
MC6225K3-1.8-TP
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-3L
Technical Specifications
Parameters and characteristics for this part
| Specification | MC6225K3-1.8-TP |
|---|---|
| Current - Output | 500 mA |
| Current - Quiescent (Iq) | 100 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-236-3, SOT-23-3, SC-59 |
| Package Name | SOT-23-3L |
| Protection Features | Over Current, Transient Voltage, Short Circuit |
| PSRR (Maximum) | 80 dB |
| PSRR (Minimum) | 75 dB |
| Voltage - Input (Max) | 6 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
