Description
General part information
IRFHM4226TRPBF
N-Channel 25 V 28A (Ta) 2.7W (Ta), 39W (Tc) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | IRFHM4226TRPBF |
|---|---|
| Current - Continuous Drain (Id) (Ta) | 28 A |
| Drain to Source Voltage (Vdss) | 25 V |
| Drive Voltage (Max Rds On) | 4.5 V |
| Drive Voltage (Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 32 nC |
| Input Capacitance (Ciss) (Max) | 2000 pF |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |

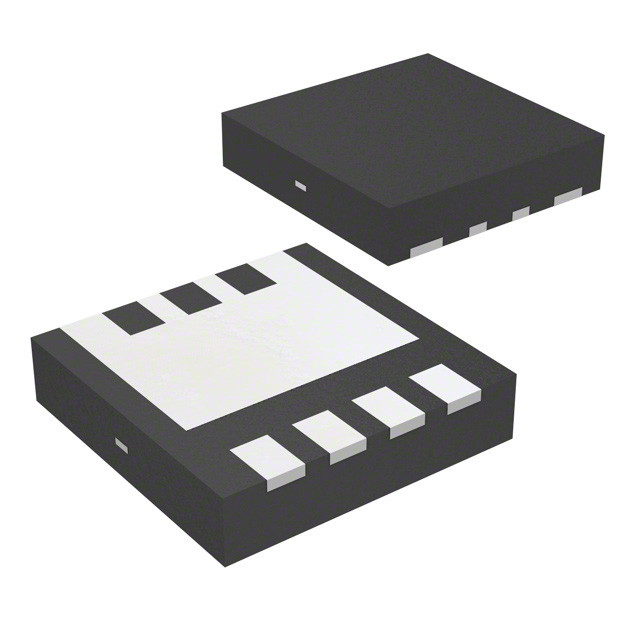

| Package / Case | 8-TQFN Exposed Pad |
| Power Dissipation (Max) | 39 W, 2.7 W |
| Rds On (Max) | 2.2 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 2.1 V |
