0600-00030
ActiveTE Connectivity AMP Connectors
RF ANT 915MHZ WHIP STR RP-SMA ML
0600-00030
ActiveTE Connectivity AMP Connectors
RF ANT 915MHZ WHIP STR RP-SMA ML
Description
General part information
0600-00030

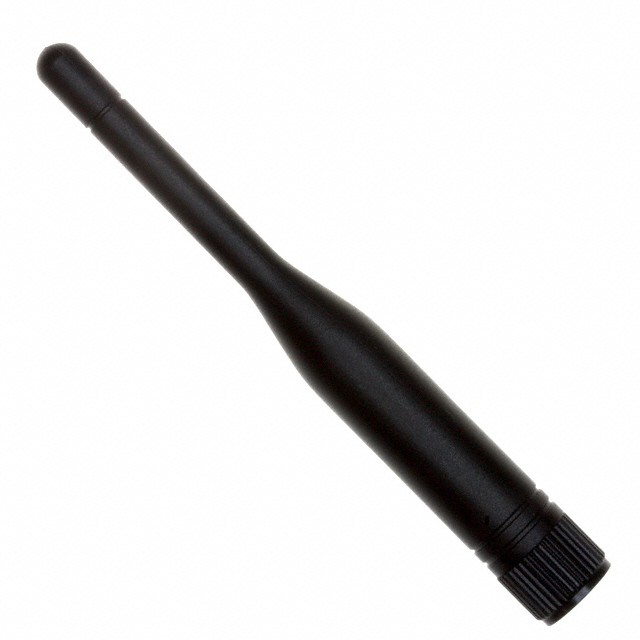

RF ANTENNA Whip, Straight RP-SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0600-00030 |
|---|---|
| Antenna Type | Straight, Whip |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 928 MHz |
| Frequency Range (Min) | 902 MHz |
| Gain | 1 dBi |
| Height (Max) | 3.465 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | RP-SMA Male |
| VSWR | 2 |
