Description
General part information

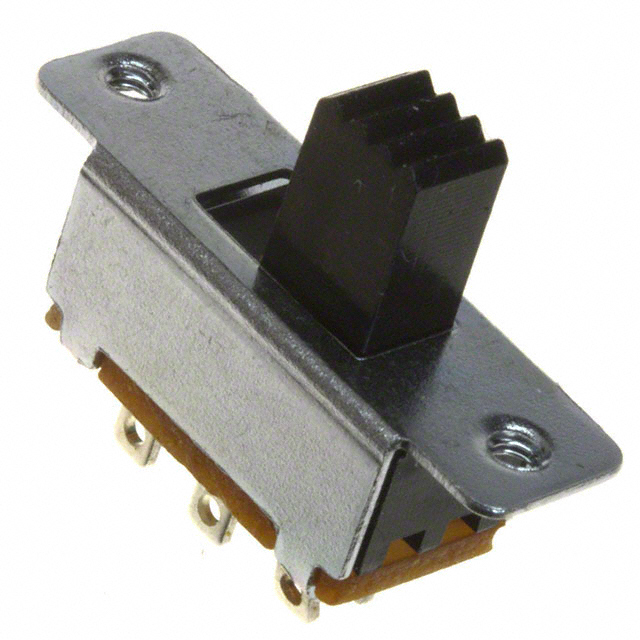

SLC22007
Slide Switch DPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SLC22007 |
|---|---|
| Actuator Length | 7 mm |
| Actuator Material | Thermoplastic |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Current Rating | 300 mA |
| Electrical Life (Cycles) | 10000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 220 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | On-On |
| Switch Travel | 3.4 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
