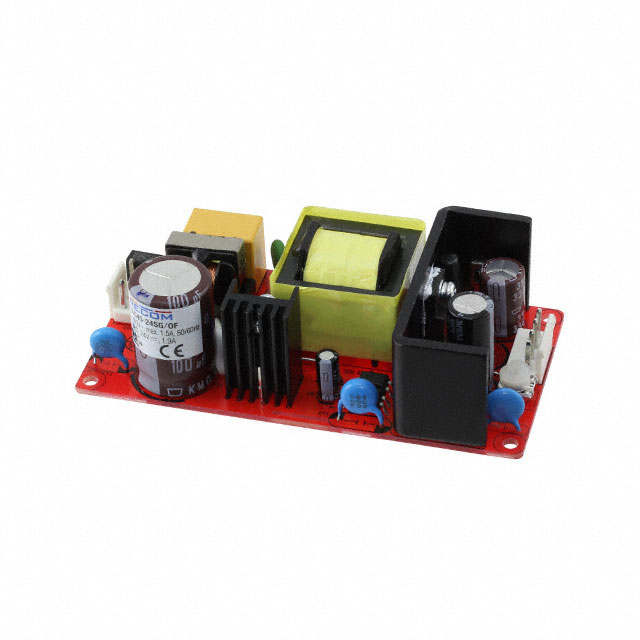

RAC45-24SG/OF
ObsoleteRecom Power
AC/DC CONVERTER 24V 46W
RAC45-24SG/OF
ObsoleteRecom Power
AC/DC CONVERTER 24V 46W
Description
General part information
RAC45-24SG/OF
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC45-24SG/OF |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 1.9 A |
| Efficiency | 85 % |
| Features | Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 46 W |
| Size / Dimension Height | 1.1 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2.01 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
