ANT-5GWWS6-RPS

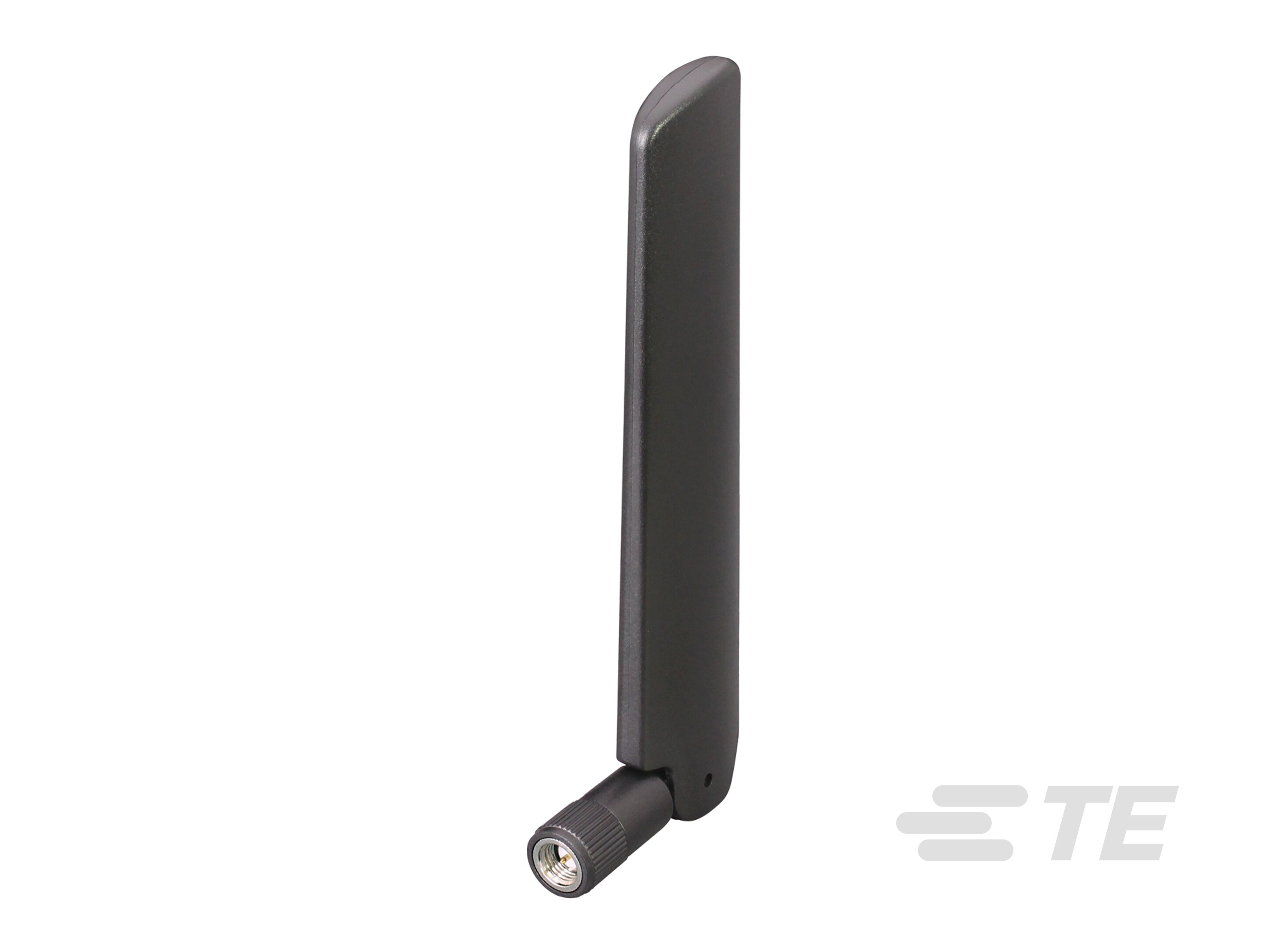

Blade Antenna, Wide Band, 5G / Cellular / LTE, External Mount, Stud/Screw/Lug Mount, RP-SMA, Omnidirectional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-5GWWS6-RPS |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | IoT, 4G, 2G, 5G, LTE-M, NB-IoT, 3G |
| Frequency (Center/Band) | 3.75GHz, 750.5MHz, 5.537GHz, 657.5MHz, 842.5MHz, 2.495GHz, 1.947GHz, 4.7GHz, 1.175GHz, 1.593GHz |
| Frequency (Center/Band) - 1 | 657.5 MHz |
| Frequency (Center/Band) - 10 | 5.537 GHz |
| Frequency (Center/Band) - 2 | 750.5 MHz |
| Frequency (Center/Band) - 3 | 842.5 MHz |
| Frequency (Center/Band) - 4 | 1.175 GHz |
| Frequency (Center/Band) - 5 | 1.593 GHz |
| Frequency (Center/Band) - 6 | 1.947 GHz |
| Frequency (Center/Band) - 7 | 2.495 GHz |
| Frequency (Center/Band) - 8 | 3.75 GHz |
| Frequency (Center/Band) - 9 | 4.7 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 10) Maximum | 5.925 GHz |
| Frequency Range (Band 10) Minimum | 5.15 GHz |
| Frequency Range (Band 2) Maximum | 803 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 894 MHz |
| Frequency Range (Band 3) Minimum | 791 MHz |
| Frequency Range (Band 4) Maximum | 1.518 GHz |
| Frequency Range (Band 4) Minimum | 832 MHz |
| Frequency Range (Band 5) Maximum | 1.661 GHz |
| Frequency Range (Band 5) Minimum | 1.525 GHz |
| Frequency Range (Band 6) Maximum | 2.2 GHz |
| Frequency Range (Band 6) Minimum | 1.695 GHz |
| Frequency Range (Band 7) Maximum | 2.69 GHz |
| Frequency Range (Band 7) Minimum | 2.3 GHz |
| Frequency Range (Band 8) Maximum | 4.2 GHz |
| Frequency Range (Band 8) Minimum | 3.3 GHz |
| Frequency Range (Band 9) Maximum | 5 GHz |
| Frequency Range (Band 9) Minimum | 4.4 GHz |
| Gain | 6 dBi, 8.9 dBi, 3.9 dBi, 4.9 dBi, 7 dBi, 5.3 dBi, 7.1 dBi, 5.5 dBi, 8.5 dBi |
| Height (Max) | 5.34 in |
| Mounting Type | Connector Mount |
| Number of Bands | 10 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular |
| Termination | RP-SMA |
| VSWR | 1.6, 1.9, 2, 2.1, 3.9, 1.8, 1.7 |
