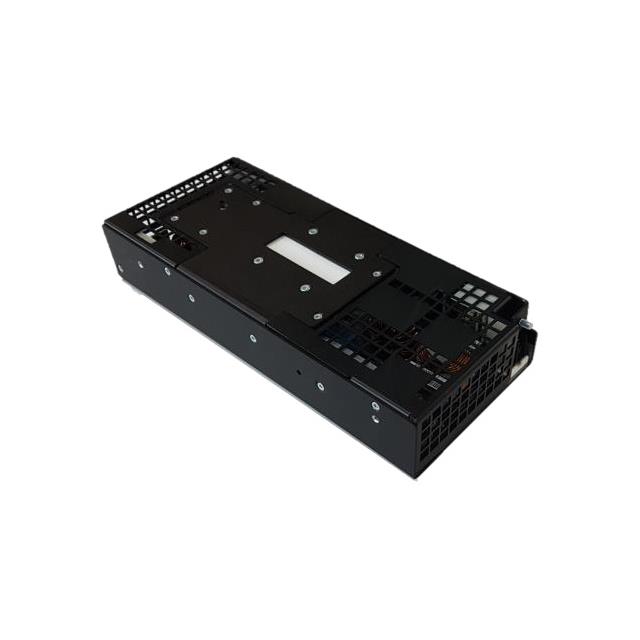

ACC750-1T24-PC

Active

Bel Power Solutions

POWER SUPPLY, AC-DC, 24V, 31.2A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bel Power Solutions

POWER SUPPLY, AC-DC, 24V, 31.2A ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 305 VAC, 120 ~ 300 VDC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ACC750-1T24-PC	ACC750 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE	cURus, DEMKO, CE
Current - Output 1	31.2 A	15.6 - 31.2 A
Efficiency	94 %	94 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	749 W	749 W
Size / Dimension [x]	234.8 mm	234 - 234.8 mm
Size / Dimension [x]	9.24 in	9.21 - 9.24 in
Size / Dimension [y]	101.6 mm	101.6 mm
Size / Dimension [y]	4 "	4 "
Size / Dimension [z]	41 mm	41 mm
Size / Dimension [z]	1.61 "	1.61 "
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed, Open Frame
Voltage - Input [Max]	305 VAC, 300 VDC	300 - 305 VAC
Voltage - Input [Min]	120 VDC, 85 VAC	85 - 120 VDC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	24 V	24 - 48 V

POWER SUPPLY, AC-DC, 48V, 15.6A ROHS COMPLIANT: YES

Part	Power (Watts)	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Efficiency	Features	Type	Number of Outputs	Current - Output 1	Standard Number	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency
Bel Power Solutions ACC750-1T48-PC	749 W	ITE (Commercial)	234.8 mm	41 mm	1.61 "	9.24 in	101.6 mm	4 "	48 V	94 %	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Enclosed	1	15.6 A	62368-1	Chassis Mount	4000 V	-20 °C	70 °C	300 VDC, 305 VAC	85 VAC, 120 VDC	CE, cURus, DEMKO
Bel Power Solutions ACC750-1T24-PC	749 W	ITE (Commercial)	234.8 mm	41 mm	1.61 "	9.24 in	101.6 mm	4 "	24 V	94 %	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Enclosed	1	31.2 A	62368-1	Chassis Mount	4000 V	-20 °C	70 °C	300 VDC, 305 VAC	85 VAC, 120 VDC	CE, cURus, DEMKO
Bel Power Solutions ACC750-1T24	749 W	ITE (Commercial)	234 mm	41 mm	1.61 "	9.21 in	101.6 mm	4 "	24 V	94 %	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Open Frame	1	31.2 A	62368-1	Chassis Mount	4000 V	-20 °C	70 °C	300 VDC, 305 VAC	85 VAC, 120 VDC	CE, cURus, DEMKO
Bel Power Solutions ACC750-1T48	749 W	ITE (Commercial)	234 mm	41 mm	1.61 "	9.21 in	101.6 mm	4 "	48 V	94 %	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Open Frame	1	15.6 A	62368-1	Chassis Mount	4000 V	-20 °C	70 °C	300 VDC, 305 VAC	85 VAC, 120 VDC	CE, cURus, DEMKO
