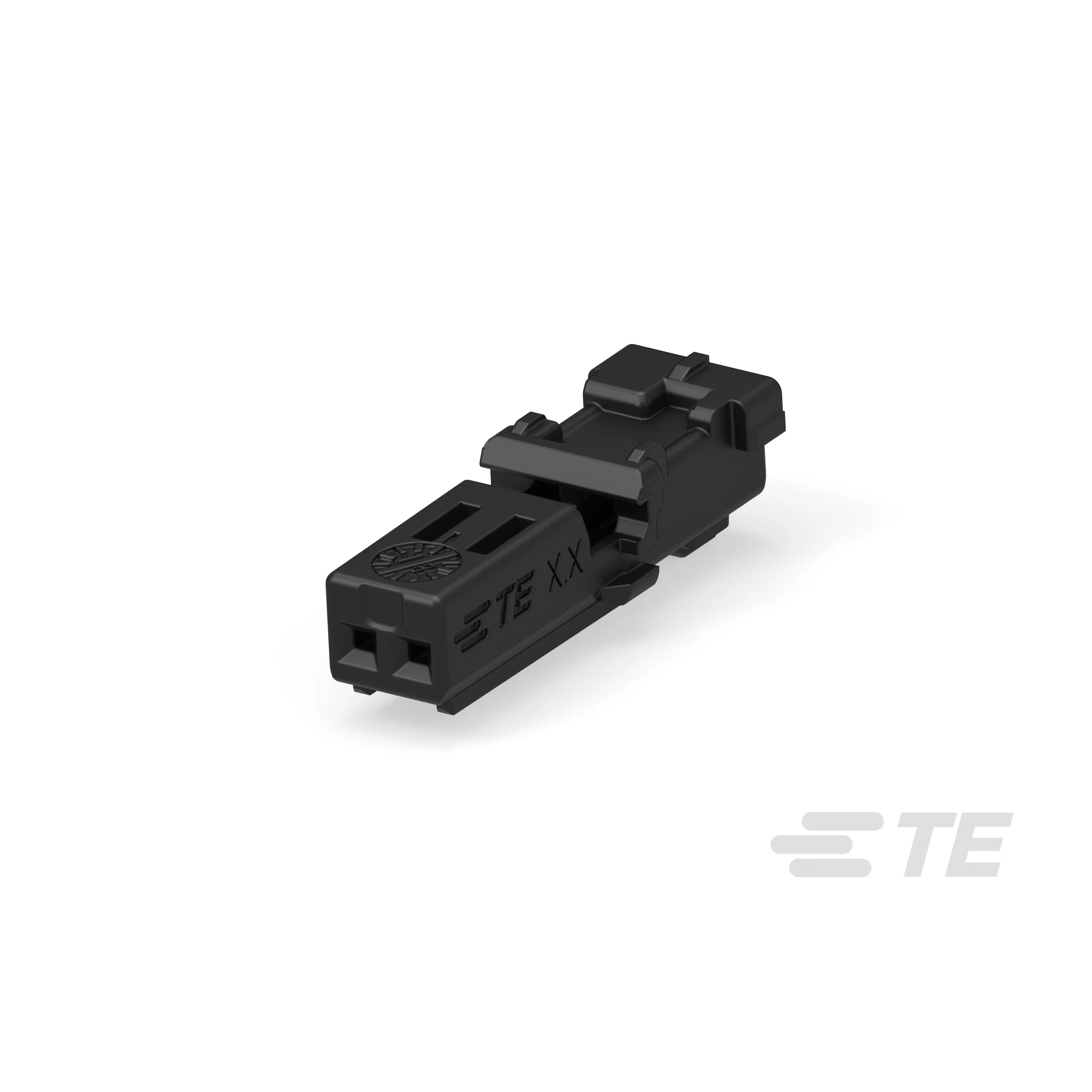

1-2302450-1
ActiveTE Connectivity AMP Connectors
MATENET, FEMALE INSERT MODUL, BLACK
1-2302450-1
ActiveTE Connectivity AMP Connectors
MATENET, FEMALE INSERT MODUL, BLACK
Description
General part information
1-2302450-1
2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 1.8 mm [.07 in] Centerline, Black, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2302450-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.071 in |
