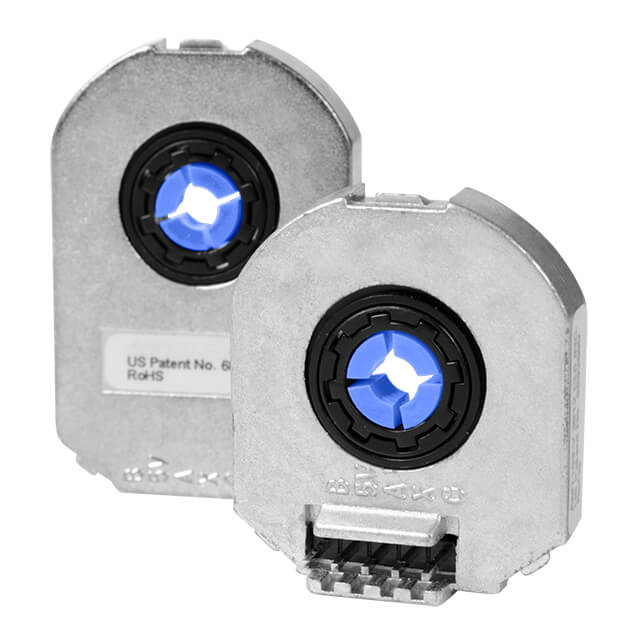

AMT102-D1024-I8000-S
ActiveSame Sky (Formerly CUI Devices)
ENC INCRE QUAD VERT TERMINAL PIN
AMT102-D1024-I8000-S
ActiveSame Sky (Formerly CUI Devices)
ENC INCRE QUAD VERT TERMINAL PIN
Description
General part information
AMT102-D1024-I8000-S
ENC INCRE QUAD VERT TERMINAL PIN
Technical Specifications
Parameters and characteristics for this part
| Specification | AMT102-D1024-I8000-S |
|---|---|
| Actuator Diameter | 8 mm |
| Actuator Stroke | 8 mm |
| Actuator Type | Open Center |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Vertical |
| Output Type | Quadrature with Index (Incremental) |
| Pulses per Revolution | 1024 |
| Termination Style | Terminal Pins |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
