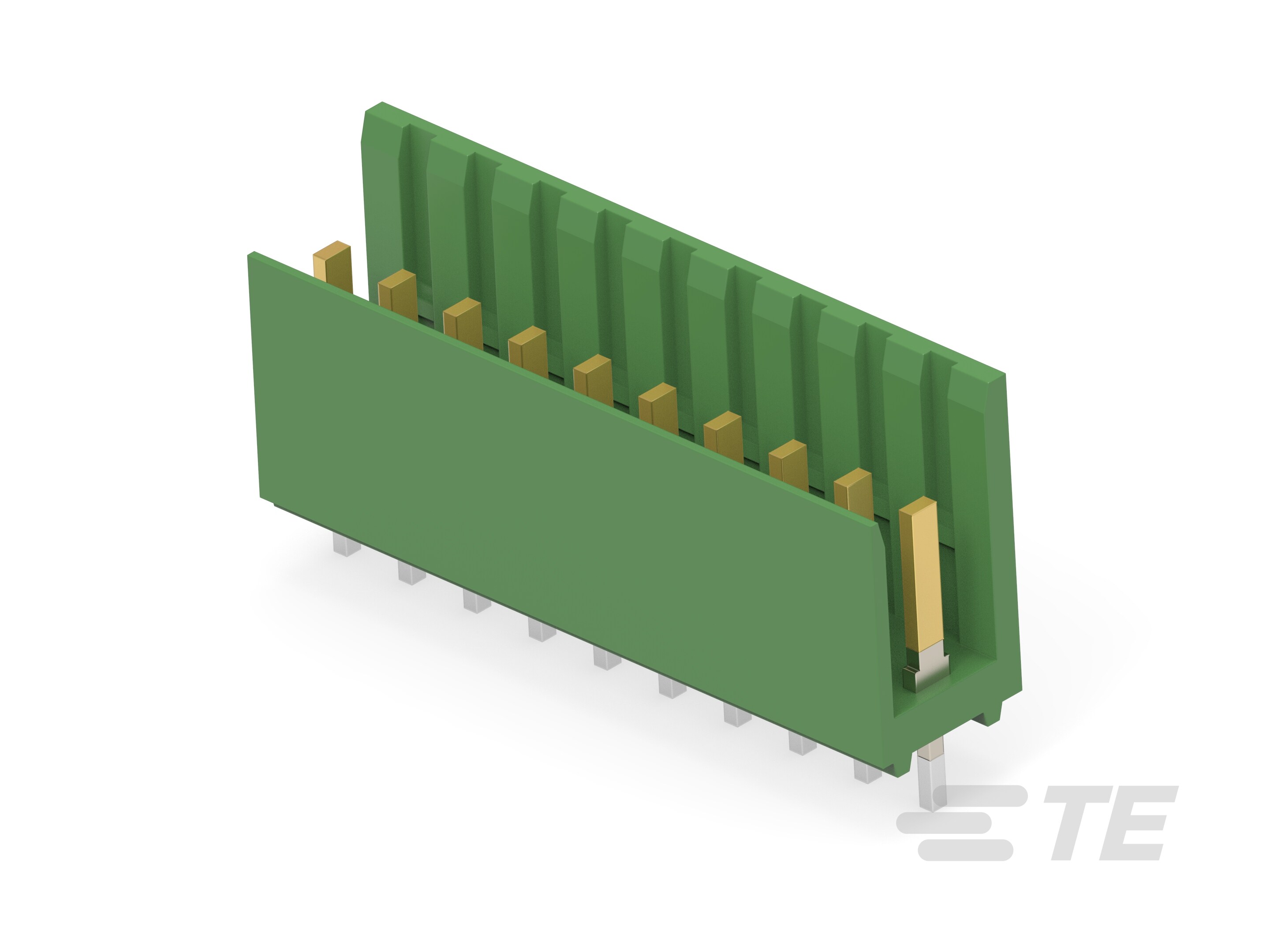

Specification	280613-2

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Length - Mating	0.394 in
Contact Length - Post	0.13 in
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Green
Insulation Height	0.913 in
Insulation Material	Glass Filled, Polycarbonate
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.642 in
Pitch - Mating	0.156 in
Shrouding	Shrouded - 2 Wall
Style	Board, Board or Cable
Termination	Solder

AMPMODU MOD 1 Series

...

Part	Number of Rows	Fastening Type	Contact Finish - Post	Pitch - Mating	Insulation Height	Shrouding	Mounting Type	Contact Finish - Mating	Overall Contact Length	Contact Length - Post	Contact Material	Number of Positions	Insulation Material	Connector Type	Style	Current Rating	Contact Length - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Shape	Termination	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Contact Termination	Contact Finish Thickness	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Pin or Socket	Contact Finish	Insulation	Mounting Hole Diameter	Pin Size - Above Flange (Shape)	Pin Size - Above Flange Width	Pin Size - Above Flange Length	Length - Overall	Pin Size - Below Flange Shape	Pin Size - Below Flange Width	Pin Size - Below Flange Length	Terminal Style	Terminal Type
TE Connectivity AMP Connectors 2-85829-0	1	Push-Pull	Gold	0.156 in	0.125 in	Unshrouded	Through Hole	Gold	0.655 in	0.125 in	Brass	20	Thermoplastic	Header	Board Board or Cable	5 A	0.405 in	Black	30 µin	Rectangular	Solder	All	105 °C	-65 °C	UL94 V-0	Male Pin
TE Connectivity AMP Connectors 280611-1	1	Detent Lock	Tin	0.156 in	0.913 in	Shrouded - 2 Wall	Through Hole	Tin	0.642 in	0.13 in	Brass	6	Glass Filled Polycarbonate	Header	Board Board or Cable		0.394 in	Green		Rectangular	Solder	All			UL94 V-0	Male Pin
TE Connectivity AMP Connectors 1-87247-9	1	Push-Pull	Gold	0.156 in	0.125 in	Unshrouded	Through Hole	Gold	0.655 in	0.125 in	Brass	19	Thermoplastic	Header	Board Board or Cable	5 A	0.587 in	Black	30 µin	Rectangular	Solder	All	105 °C	-65 °C	UL94 V-0	Male Pin
TE Connectivity AMP Connectors 87984-8	1	Push-Pull	Gold	0.156 in	0.3 in		Through Hole	Gold		0.112 in	Phosphor Bronze	8	Thermoplastic	Bottom Entry Receptacle	Board Board or Cable			Black	30 µin	Square	Solder	All	105 °C	-65 °C	UL94 V-0	Female Socket	Flash	Flash
TE Connectivity AMP Connectors 87113-4	1		Gold	0.156 in	0.125 in	Unshrouded	Through Hole	Gold	1.126 in	0.125 in	Brass	4	Thermoplastic	Header	Board		0.875 in	Black	30 µin	Square	Solder	All				Male Pin	Flash	Flash
TE Connectivity AMP Connectors 85493-4																													PCB Solder	30 µin 50 µin	18 AWG	26 AWG	Socket	Gold
TE Connectivity AMP Connectors 1-5086147-0							Through Hole				Brass										Press-Fit									100 µin				Tin	Non-Insulated	0.078 in	Rectangular	0.065 in	0.031 in	0.998 in	Rectangular	0.065 in	0.031 in	Smooth	Single Post
TE Connectivity AMP Connectors 1-87258-0	1	Push-Pull	Gold	0.156 in	0.25 in	Unshrouded	Right Angle Through Hole	Gold		0.15 in	Brass	10	Thermoplastic	Header	Board Board or Cable	5 A	0.5 in	Black	15 µin	Rectangular	Solder	All	105 °C	-65 °C	UL94 V-0	Male Pin
TE Connectivity AMP Connectors 87988-5	1	Push-Pull	Gold	0.156 in	0.175 in		Right Angle Through Hole	Gold		0.145 in	Phosphor Bronze	5	Thermoplastic	Receptacle	Board Board or Cable			Black	30 µin	Square	Solder	All	105 °C	-65 °C	UL94 V-0	Female Socket	Flash	Flash
TE Connectivity AMP Connectors 280617-1	1	Detent Lock	Tin	0.156 in	0.346 in	Shrouded - 2 Wall	Right Angle Through Hole	Tin		0.126 in	Brass	6	Glass Filled Polycarbonate	Header	Board Board or Cable		0.394 in	Green		Rectangular	Solder	All			UL94 V-0	Male Pin
