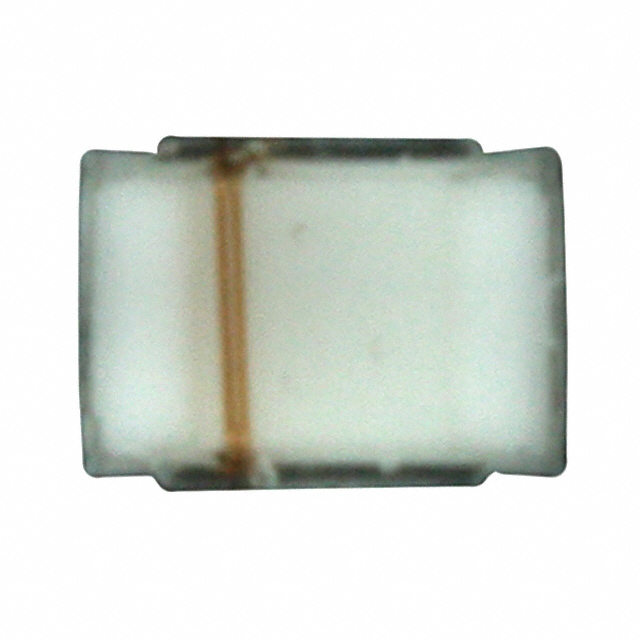

B82498F3829K000
ActiveEPCOS - TDK Electronics
FIXED IND 8.2NH 700MA 90MOHM SMD
B82498F3829K000
ActiveEPCOS - TDK Electronics
FIXED IND 8.2NH 700MA 90MOHM SMD
Description
General part information
B82498F3829K000
8.2 nH Unshielded Drum Core, Wirewound Inductor 700 mA 90mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82498F3829K000 |
|---|---|
| Current Rating | 700 mA |
| DC Resistance (DCR) (Max) | 90 mOhm |
| Frequency - Self Resonant | 5 GHz |
| Height - Seated (Max) | 0.055 in |
| Inductance | 8.2 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Package Length | 2 mm |
| Package Name | 0805, 0805 (2012 Metric) |
| Package Width | 1.2 mm |
| Q | 50 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.091 in |
| Size / Dimension Width | 0.067 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
