G4020H05B-RSR-EM

Active

Mechatronics Fan Group

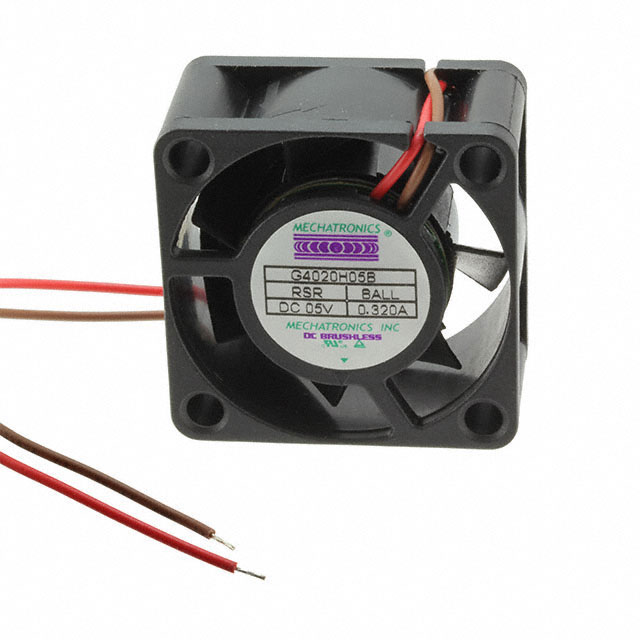

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet +2

G4020H05B-RSR-EM

Active

Mechatronics Fan Group

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.08
		10	$ 13.45
		25	$ 12.85
		50	$ 12.41
		100	$ 11.99
		300	$ 11.35
		600	$ 10.96

Description

General part information

G4020 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 11.0 CFM (0.308m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Specification	G4020H05B-RSR-EM	G4020 Series

Air Flow	-	0.168 - 0.328 mł/min
Air Flow	-	6 - 11.7 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.065 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach), Locked Rotor Sensor, Conformal Coating, PWM Control
Ingress Protection	IP57 - Dust Protected, Waterproof	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	29 dB(A)	21 - 32 dB(A)
RPM	7000 RPM	4000 - 8000 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	49.8 Pa	17.4 - 57.3 Pa
Static Pressure	0.2 in H2O	0.07 - 0.23 in H2O
Termination	2 Wire Leads	4 Wire Leads, 3 Wire Leads, 2 Wire Leads, 5 Wire Leads
Voltage - Rated	5 V	5 - 24 VDC
Weight	28.12 g	28.12 g
Weight	0.062 lb	0.062 lb
Width [y]	20 mm	20 mm

Part

Size / Dimension [z]

Size / Dimension

Size / Dimension [x]

Current Rating (Amps)

Width [y]

Voltage - Rated

RPM

Termination

Material - Blade

Bearing Type

Noise

Approval Agency

Fan Type

Weight

Static Pressure

Air Flow

Features

Ingress Protection

Mechatronics Fan Group

G4020L24B1-RSR-WS

40 mm

Square

40 mm

70 mA

20 mm

24 VDC

5000 RPM

4 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

23 dB(A)

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.11 in H2O

27.4 Pa

0.224 mł/min

8 CFM

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020S12B2-RSR

40 mm

Square

40 mm

50 mA

20 mm

12 VDC

4000 RPM

3 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

21 dB(A)

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.07 in H2O

17.4 Pa

0.168 m³/min

6 CFM

Locked Rotor Sensor, Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020H05B1-RSR

40 mm

Square

40 mm

20 mm

5 V

7000 RPM

3 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

29 dB(A)

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.2 in H2O

49.8 Pa

Speed Sensor (Tach), Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020E24B-RSR-CC

40 mm

Square

40 mm

110 mA

20 mm

24 VDC

8000 RPM

2 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

32 dB

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.23 in H2O

57.3 Pa

0.328 mł/min

11.7 CFM

Conformal Coating, Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020S05B-RSR

40 mm

Square

40 mm

120 mA

20 mm

5 V

4000 RPM

2 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

21 dB(A)

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.07 in H2O

17.4 Pa

0.168 m³/min

6 CFM

Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020M12B1-RSR

40 mm

Square

40 mm

0.095 A

20 mm

12 VDC

6000 RPM

3 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

26 dB

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.252 mł/min

9 CFM

Speed Sensor (Tach), Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020H24B1-RSR

40 mm

Square

40 mm

20 mm

24 VDC

7000 RPM

3 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

29 dB(A)

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.2 in H2O

49.8 Pa

0.308 mł/min

11 CFM

Speed Sensor (Tach), Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020L05B2-RSR

40 mm

Square

40 mm

20 mm

5 V

5000 RPM

3 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

23 dB(A)

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.11 in H2O

27.4 Pa

0.224 mł/min

8 CFM

Locked Rotor Sensor, Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020H12B2-RSR

40 mm

Square

40 mm

20 mm

12 VDC

7000 RPM

3 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

29 dB(A)

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.2 in H2O

49.8 Pa

0.308 mł/min

11 CFM

Locked Rotor Sensor, Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4020E05B-RSR

40 mm

Square

40 mm

0.44 A

20 mm

5 V

8000 RPM

2 Wire Leads

Polybutylene Terephthalate (PBT)

Ball

32 dB

CE, cUL, TUV, UL

Tubeaxial

28.12 g

0.062 lb

0.23 in H2O

57.3 Pa

0.328 mł/min

11.7 CFM

Thermal Overload Protector (TOP)

Part	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Current Rating (Amps)	Width [y]	Voltage - Rated	RPM	Termination	Material - Blade	Bearing Type	Noise	Approval Agency	Fan Type	Weight	Weight	Static Pressure	Static Pressure	Air Flow	Air Flow	Features
Mechatronics Fan Group G4020L24B1-RSR-WS	40 mm	Square	40 mm	70 mA	20 mm	24 VDC	5000 RPM	4 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	23 dB(A)	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.11 in H2O	27.4 Pa	0.224 mł/min	8 CFM	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020S12B2-RSR	40 mm	Square	40 mm	50 mA	20 mm	12 VDC	4000 RPM	3 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	21 dB(A)	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.07 in H2O	17.4 Pa	0.168 m³/min	6 CFM	Locked Rotor Sensor, Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020H05B1-RSR	40 mm	Square	40 mm		20 mm	5 V	7000 RPM	3 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	29 dB(A)	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.2 in H2O	49.8 Pa			Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020E24B-RSR-CC	40 mm	Square	40 mm	110 mA	20 mm	24 VDC	8000 RPM	2 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	32 dB	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.23 in H2O	57.3 Pa	0.328 mł/min	11.7 CFM	Conformal Coating, Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020S05B-RSR	40 mm	Square	40 mm	120 mA	20 mm	5 V	4000 RPM	2 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	21 dB(A)	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.07 in H2O	17.4 Pa	0.168 m³/min	6 CFM	Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020M12B1-RSR	40 mm	Square	40 mm	0.095 A	20 mm	12 VDC	6000 RPM	3 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	26 dB	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb			0.252 mł/min	9 CFM	Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020H24B1-RSR	40 mm	Square	40 mm		20 mm	24 VDC	7000 RPM	3 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	29 dB(A)	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.2 in H2O	49.8 Pa	0.308 mł/min	11 CFM	Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020L05B2-RSR	40 mm	Square	40 mm		20 mm	5 V	5000 RPM	3 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	23 dB(A)	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.11 in H2O	27.4 Pa	0.224 mł/min	8 CFM	Locked Rotor Sensor, Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020H12B2-RSR	40 mm	Square	40 mm		20 mm	12 VDC	7000 RPM	3 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	29 dB(A)	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.2 in H2O	49.8 Pa	0.308 mł/min	11 CFM	Locked Rotor Sensor, Thermal Overload Protector (TOP)
Mechatronics Fan Group G4020E05B-RSR	40 mm	Square	40 mm	0.44 A	20 mm	5 V	8000 RPM	2 Wire Leads	Polybutylene Terephthalate (PBT)	Ball	32 dB	CE, cUL, TUV, UL	Tubeaxial	28.12 g	0.062 lb	0.23 in H2O	57.3 Pa	0.328 mł/min	11.7 CFM	Thermal Overload Protector (TOP)
