CGA9N2X7R2A155K230KA
NRNDTDK Corporation

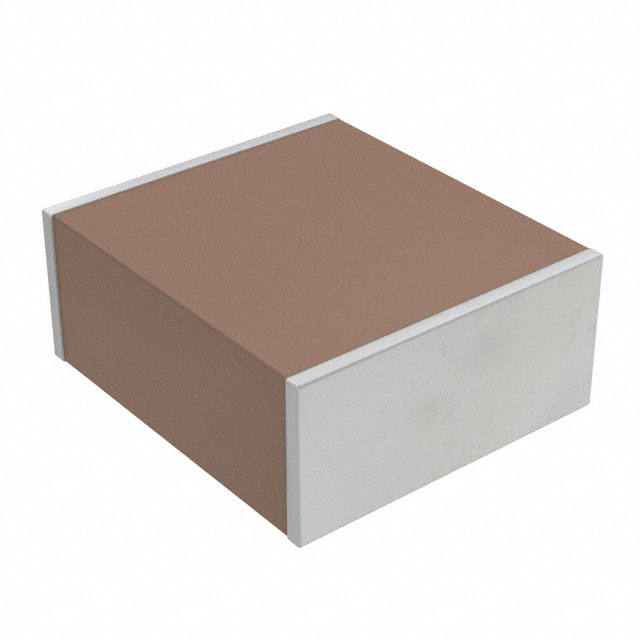

CAP CER 1.5UF 100V X7R 2220
CGA9N2X7R2A155K230KA
NRNDTDK Corporation
CAP CER 1.5UF 100V X7R 2220
Description
General part information
CGA9N2X7R2A155K230KA
1.5 µF ±10% 100V Ceramic Capacitor X7R 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CGA9N2X7R2A155K230KA |
|---|---|
| Applications | Automotive |
| Capacitance | 1.5 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2220 (5750 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.224 in |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.098 in |
| Tolerance | 10 % |
| Voltage - Rated | 100 VAC/DC |
