5180-4PG-330
ActiveConxall/Switchcraft

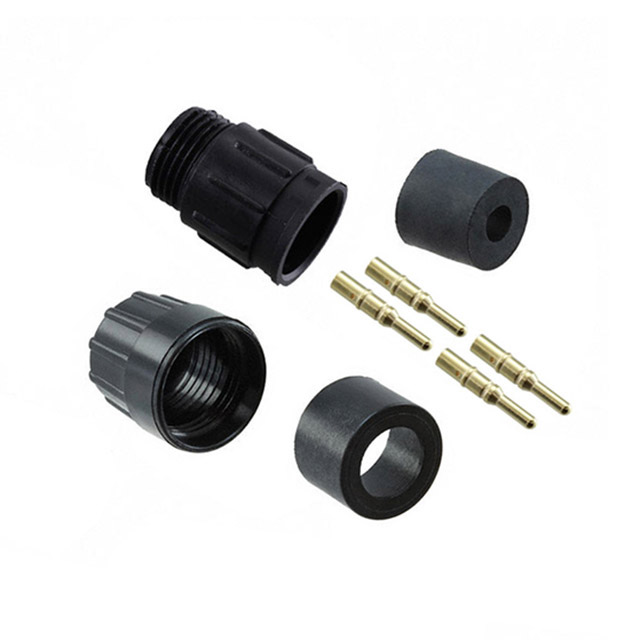

CONN RCPT MALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5180-4PG-330
ActiveConxall/Switchcraft
CONN RCPT MALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5180-4PG-330 | 5180-4PG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening [Max] [diameter] | 0.32 in | 0.23 - 0.32 in |
| Cable Opening [Max] [diameter] | 8.13 mm | 8.13 mm |
| Cable Opening [Min] [diameter] | 7.62 mm | 5.33 - 7.62 mm |
| Cable Opening [Min] [diameter] | 0.3 in | 0.21 - 0.3 in |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
5180-4PG Series
CONN RCPT MALE 4POS GOLD CRIMP
| Part | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Features | Mounting Type | Orientation | Cable Opening [custom] | Cable Opening [custom] | Shielding | Voltage Rating | Color | Number of Positions | Fastening Type | Ingress Protection | Backshell Material, Plating | Primary Material | Contact Material | Connector Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5180-4PG-515 | Gold | -40 °C | 115 °C | Crimp | Backshell, Cable Clamp | Free Hanging (In-Line) | Keyed | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Unshielded | 600 V | Black | 4 | Bayonet Lock | Weathertight | Nylon, Polyamide (PA) | Plastic | Brass | Male Pins, Receptacle | |||||||||
Conxall/Switchcraft 5180-4PG-330 | Gold | -40 °C | 115 °C | Crimp | Backshell | Free Hanging (In-Line) | Keyed | Unshielded | 600 V | Black | 4 | Bayonet Lock | Weathertight | Nylon, Polyamide (PA) | Plastic | Brass | Male Pins, Receptacle | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | |||||||
Conxall/Switchcraft 5180-4PG-518 | Gold | -40 °C | 115 °C | Crimp | Backshell, Cable Clamp | Free Hanging (In-Line) | Keyed | Unshielded | 600 V | Black | 4 | Bayonet Lock | Weathertight | Nylon, Polyamide (PA) | Plastic | Brass | Male Pins, Receptacle | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 5180-4PG-3DC | Gold | -40 °C | 115 °C | Crimp | Backshell | Free Hanging (In-Line) | Keyed | Unshielded | 600 V | Black | 4 | Bayonet Lock | Weathertight | Nylon, Polyamide (PA) | Plastic | Brass | Male Pins, Receptacle | |||||||||||
Conxall/Switchcraft 5180-4PG-328 | Gold | -40 °C | 115 °C | Crimp | Backshell | Free Hanging (In-Line) | Keyed | Unshielded | 600 V | Black | 4 | Bayonet Lock | Weathertight | Nylon, Polyamide (PA) | Plastic | Brass | Male Pins, Receptacle | 7.11 mm | 0.29 in | 0.28 in | 7.37 mm | |||||||
Conxall/Switchcraft 5180-4PG-528 | Gold | -40 °C | 115 °C | Crimp | Backshell, Cable Clamp | Free Hanging (In-Line) | Keyed | Unshielded | 600 V | Black | 4 | Bayonet Lock | Weathertight | Nylon, Polyamide (PA) | Plastic | Brass | Male Pins, Receptacle | 7.11 mm | 0.29 in | 0.28 in | 7.37 mm | |||||||
Conxall/Switchcraft 5180-4PG-521 | Gold | -40 °C | 115 °C | Crimp | Backshell, Cable Clamp | Free Hanging (In-Line) | Keyed | Unshielded | 600 V | Black | 4 | Bayonet Lock | Weathertight | Nylon, Polyamide (PA) | Plastic | Brass | Male Pins, Receptacle | 5.33 mm | 0.23 in | 0.21 in | 5.84 mm |
