1059410-1
ActiveTE Connectivity AMP Connectors
CONN OSP JACK STR 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1059410-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | OSP |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 22 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |

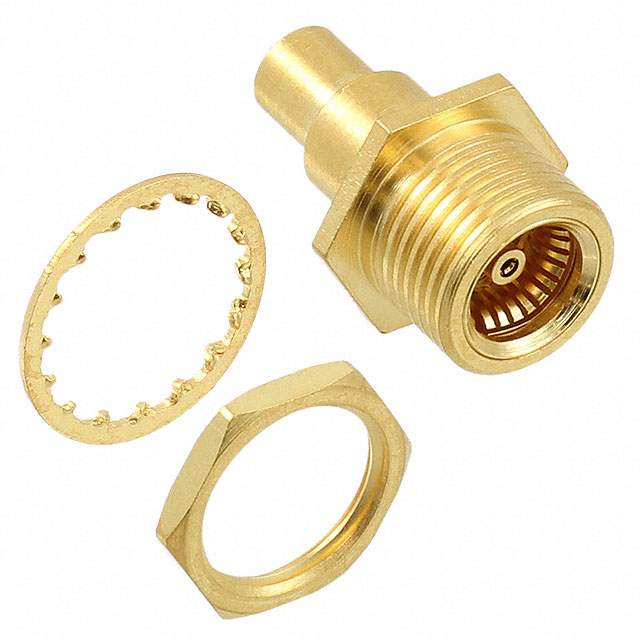

| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 5000 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1059410 Series
CONN OSP JACK STR 50 OHM SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Body Finish | Body Material | Number of Ports | Center Contact Plating | Contact Termination | Connector Style | Shield Termination | Voltage Rating | Dielectric Material | Impedance | Connector Type | Housing Color | Fastening Type | Frequency - Max [Max] | Mating Cycles | Center Contact Material | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1059410-1 | 125 °C | -65 ░C | Bulkhead - Front Side Nut | Gold | Stainless Steel | 1 | Gold | Solder | OSP | Solder | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Female Socket, Jack | Gold | Snap-On | 22 GHz | 5000 | Beryllium Copper | 1 Connector, 1 Lockwasher, 1 Nut |
Description
General part information
1059410 Series
OSP Connector Jack, Female Socket 50 Ohms Panel Mount Solder
