100033386

Active

Telegartner Inc

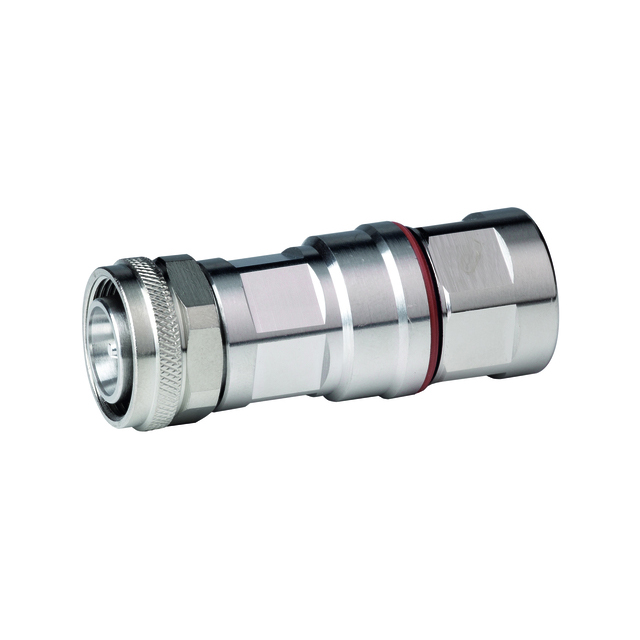

4.3-10 STRAIGHT PLUG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100033386

Active

Telegartner Inc

4.3-10 STRAIGHT PLUG SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 41.42
		10	$ 38.06
		25	$ 35.21
		50	$ 31.29

Description

General part information

J01440A0 Series

4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100033386	J01440A0 Series

Body Finish	White Bronze	White Bronze, Silver
Body Material	Brass	Brass
Center Contact Material	Copper Alloy	Copper Alloy, Brass
Center Contact Plating	Silver	Silver
Connector Style	4.3/10	4.3/10
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder, Crimp	Solder, Crimp
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	3 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP67 - Dust Tight, Waterproof
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 155 °C
Operating Temperature [Min]	-40 °C	-55 - -30 °C
Shield Termination	Clamp	Clamp, Crimp, Solder
Voltage Rating	1000 VDC	1000 - 1800 VDC

J01440A0 Series

4.3-10 STRAIGHT PLUG SCREW

Part	Connector Style	Center Contact Plating	Voltage Rating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Shield Termination	Mounting Type	Center Contact Material	Connector Type	Body Finish	Contact Termination	Number of Ports	Frequency - Max [Max]	Impedance	Body Material	Dielectric Material
Telegartner Inc 100033386	4.3/10	Silver	1000 VDC	IP68 - Dust Tight, Waterproof	85 °C	-40 °C	Silver	Clamp	Free Hanging (In-Line)	Copper Alloy	Male Pin, Plug	White Bronze	Crimp, Solder	1	6000 MHz	50 Ohms	Brass
Telegartner Inc 100025192	4.3/10	Silver		IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Silver	Crimp	Free Hanging (In-Line), Right Angle	Brass	Male Pin, Plug	White Bronze	Solder	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025183	4.3/10	Silver	1000 VDC	IP68 - Dust Tight, Waterproof	85 °C	-40 °C	Silver	Clamp	Free Hanging (In-Line)	Brass	Male Pin, Plug	White Bronze	Crimp, Solder	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025179	4.3/10	Silver		IP68 - Dust Tight, Waterproof			Silver	Solder	Free Hanging (In-Line), Right Angle	Brass	Male Pin, Plug	Silver	Solder	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025201	4.3/10	Silver		IP67 - Dust Tight, Waterproof	155 °C	-55 °C	Silver	Solder	Free Hanging (In-Line)	Brass	Male Pin, Plug	Silver	Solder	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025180	4.3/10	Silver			85 °C	-40 °C	Silver	Crimp	Free Hanging (In-Line)	Brass	Male Pin, Plug	White Bronze	Crimp	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025193	4.3/10	Silver		IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Silver	Crimp	Free Hanging (In-Line), Right Angle	Brass	Male Pin, Plug	White Bronze	Solder	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025200	4.3/10	Silver		IP67 - Dust Tight, Waterproof	155 °C	-55 °C	Silver	Solder	Free Hanging (In-Line)	Brass	Male Pin, Plug	Silver	Solder	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025191	4.3/10	Silver	1000 VDC	IP68 - Dust Tight, Waterproof	85 °C	-40 °C	Silver	Clamp	Free Hanging (In-Line), Right Angle	Copper Alloy	Male Pin, Plug	White Bronze	Crimp, Solder	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025187	4.3/10	Silver			85 °C	-40 °C	Silver	Crimp	Free Hanging (In-Line)	Copper Alloy	Male Pin, Plug	White Bronze	Crimp	1	6000 MHz	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
