SCRH74-181
ActiveSignal Transformer
FIXED IND 180UH 420MA 980MOHM SM
SCRH74-181
ActiveSignal Transformer
FIXED IND 180UH 420MA 980MOHM SM
Description
General part information
SCRH74-181

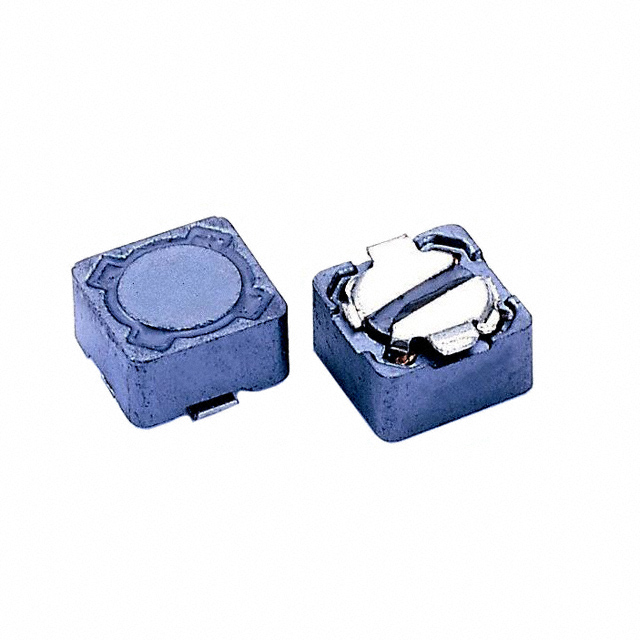

180 µH Shielded Inductor 420 mA 980mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH74-181 |
|---|---|
| Current - Saturation (Isat) | 0.42 mA |
| Current Rating | 0.42 A |
| DC Resistance (DCR) (Max) | 980 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 180 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.307 in |
| Size / Dimension Width | 0.307 in |
| Tolerance | 20 % |
