EN3C7FX
ActiveSwitchcraft Inc.

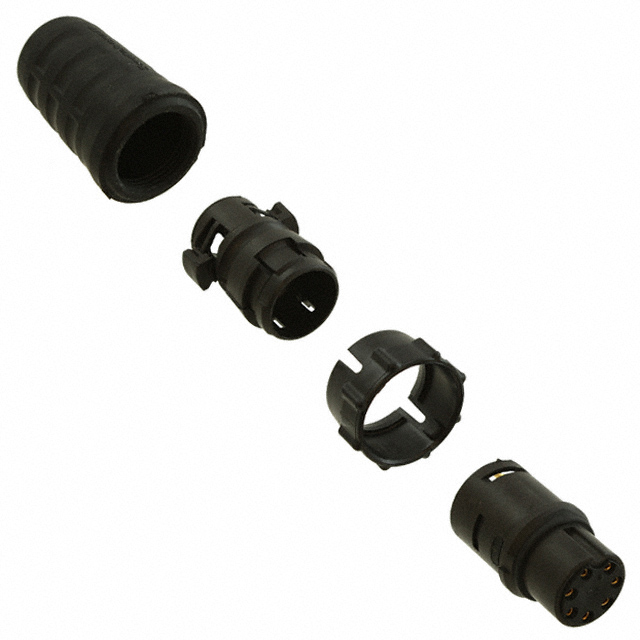

CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3C7FX
ActiveSwitchcraft Inc.
CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3C7FX | EN3C7F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 6.5 A | 6.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3C7F Series
CONN PLUG FMALE 7POS GOLD CRIMP
| Part | Insert Material | Current Rating (Amps) | Number of Positions | Applications | Primary Material | Contact Finish - Mating | Voltage Rating | Features | Color | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [diameter] | Cable Opening [diameter] | Contact Material | Termination | Shielding | Mounting Type | Backshell Material, Plating | Ingress Protection | Orientation | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3C7FCX | Elastomer | 6.5 A | 7 | General Purpose, Instrumentation, Marine, Medical | Plastic | Gold | 250 VAC | Backshell, Cable Clamp, Coupling Nut | Black | UL94 V-0 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Copper Alloy | Crimp | Unshielded | Free Hanging (In-Line) | Thermoplastic | IP66/IP68 | Keyed | Female Sockets, Plug | Bayonet Lock |
Switchcraft Inc. EN3C7FX | Elastomer | 6.5 A | 7 | General Purpose, Instrumentation, Marine, Medical | Plastic | Gold | 250 VAC | Backshell, Cable Clamp, Coupling Nut | Black | UL94 V-0 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Copper Alloy | Unshielded | Free Hanging (In-Line) | Thermoplastic | IP66/IP68 | Keyed | Female Sockets, Plug | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.79 | |
| 10 | $ 20.67 | |||
| 25 | $ 18.72 | |||
| 50 | $ 17.40 | |||
| 100 | $ 16.21 | |||
| 300 | $ 14.54 | |||
| 500 | $ 13.86 | |||
Description
General part information
EN3C7F Series
7 Position Circular Connector Plug, Female Sockets Solder Cup
