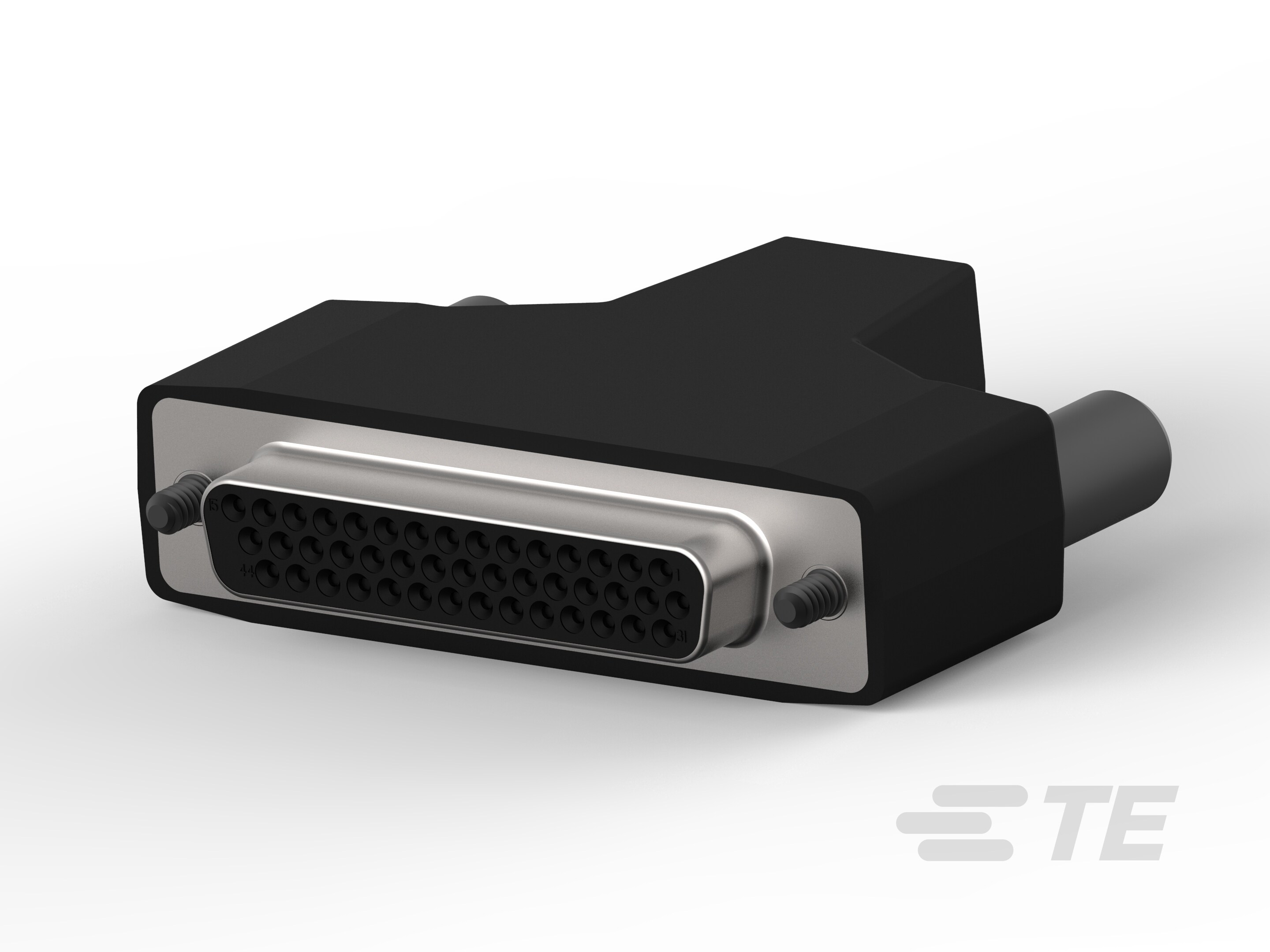

KIT,RCPT,44P,HDP-22,SHLD ENCLSRE-5748641-1

5748641-1

Active
TE Connectivity AMP Connectors

CONN D-SUB SKT 44 POS CRIMP ST CABLE MOUNT 44 TERMINAL 1 PORT KIT

Find alt
KIT,RCPT,44P,HDP-22,SHLD ENCLSRE-5748641-1

5748641-1

Active
TE Connectivity AMP Connectors

CONN D-SUB SKT 44 POS CRIMP ST CABLE MOUNT 44 TERMINAL 1 PORT KIT

Find alt

Description

General part information

5748641-1

44 Position D-Shaped Connector, Receptacle, Cable-to-Cable, Panel Mount, 3 Shell Size, 2.29 mm [.09 in] Centerline, Wire & Cable, Signal

Technical Specifications

Parameters and characteristics for this part

Specification5748641-1
Connector LayoutDB, B, High Density
Connector StyleHigh Density, D-Sub
Connector TypeReceptacle for Female Contacts
Contact TypeSignal
FeaturesShielded, Backshell
FinishTin Plated
Flange FeatureCable Side (4-40)
Mounting TypeFree Hanging (In-Line)
Number of Positions44
Number of Rows3
Shell MaterialSteel
Shell Size3
