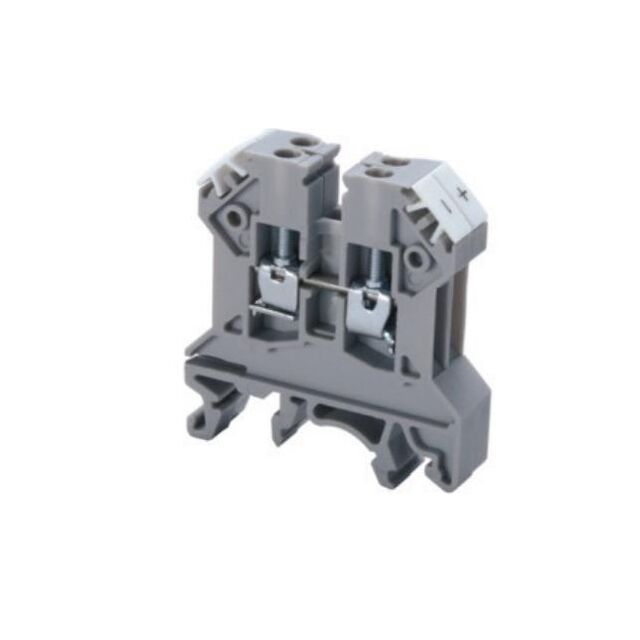

CTT2.5UK
ActiveAltech Corporation
DIN TERM BLK, SCREW, THERMOCOUPL
CTT2.5UK
ActiveAltech Corporation
DIN TERM BLK, SCREW, THERMOCOUPL
Description
General part information
CTT2.5UK
Terminal Block Connector 2 Position Feed Through 14-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | CTT2.5UK |
|---|---|
| Current - IEC | 10 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 8 mm |
| Terminal Width | 1 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 1000 V |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
