ZB4BZ101
ActiveCONTACT BLOCK, BODY/FIXING COLLAR, 10 A, 600 V, 1 POLE, ZB4 SERIES, SCREW CLAMP, SPST-NO
ZB4BZ101
ActiveCONTACT BLOCK, BODY/FIXING COLLAR, 10 A, 600 V, 1 POLE, ZB4 SERIES, SCREW CLAMP, SPST-NO
Description
General part information
ZB4BZ101

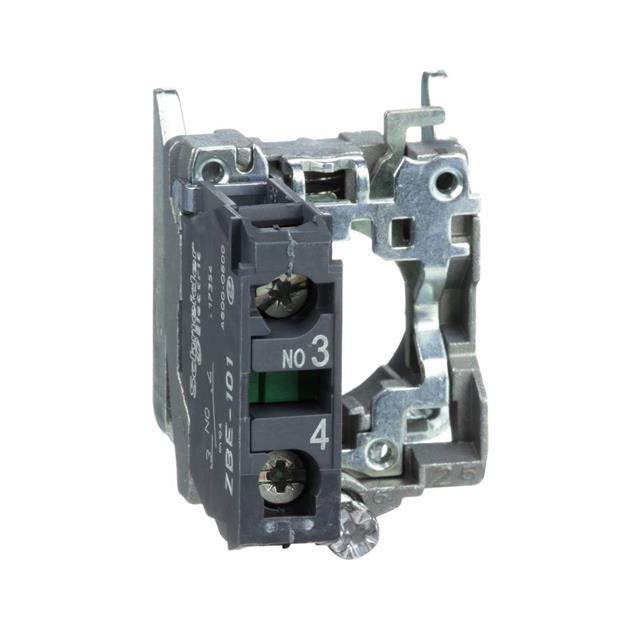

The ZB4BZ101 is a single-pole Contact Block with screw clamp terminals and silver alloy NO contact. The block features slow-break operation, 10A cartridge fuse type gG conforming to EN/IEC 60947-5-1 short circuit protection and Zamak fixing collar. It is designed for use with ZB4, ZB5 and ZBE series pushbutton switches.
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB4BZ101 |
|---|---|
| Circuit | SPST-NO |
| Compatible Series | Harmony XB4, Schneider Electric |
| Contact Rating (Current) | 6 A, 550 mA |
| Requires | Switch Body |
| Termination Style | Screw Terminal |
