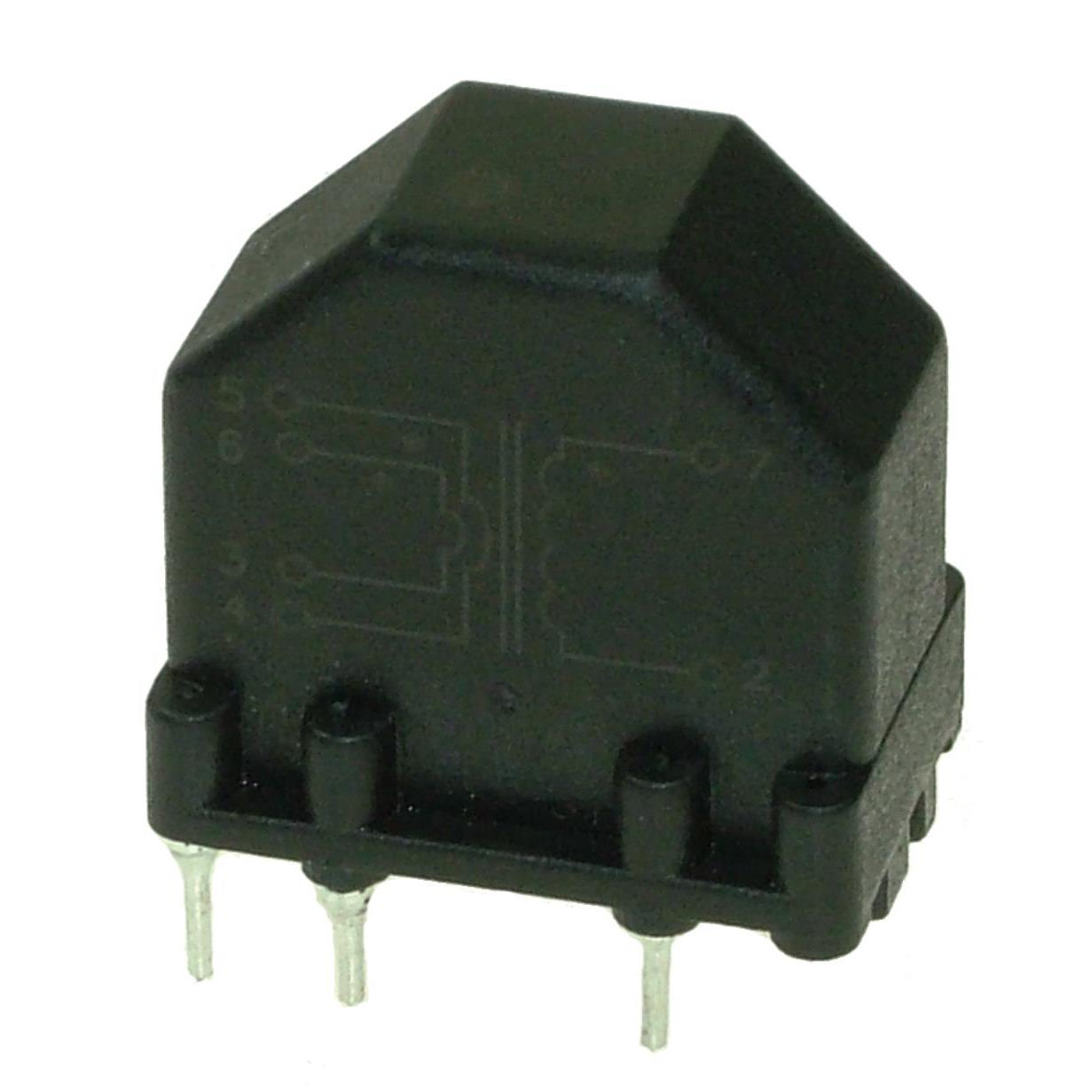

VTX-151-15520S
40 A 1:2000 Current Sense Transformer 40Hz ~ 20kHz 500mOhm Primary Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | VTX-151-15520S |
|---|---|
| Current Rating | 40 A |
| Current Ratio | 2000 ratio |
| DC Resistance (DCR) (Primary) | 500 mOhm |
| DC Resistance Type | Primary |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 40 Hz |
| Height - Seated (Max) | 0.976 in |
| Mounting Type | Through Hole |
| Size / Dimension Length | 0.886 in |
| Size / Dimension Width | 0.571 in |
| Termination Style | PC Pin |
| Turns Ratio - Primary | 2000, 1 |
| Turns Ratio - Secondary | 1, 2000 |
| Type | Invasive |
