Description
General part information

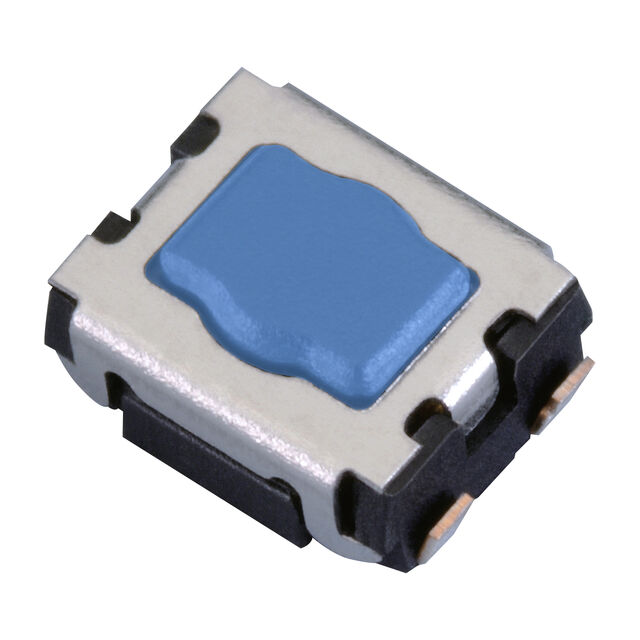

TL1030AF350BQJ
Tactile Switch SPST-NO Top Actuated Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TL1030AF350BQJ |
|---|---|
| Actuator Height off PCB (Vertical) | 1.7 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating (Current) | 0.05 A |
| Features | Grounding Pin |
| Illumination | Non-Illuminated |
| Mechanical Life (Cycles) | 200000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 350 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Length | 3.5 mm |
| Outline Width | 2.9 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.15 mm |
| Termination Style | J Lead |
