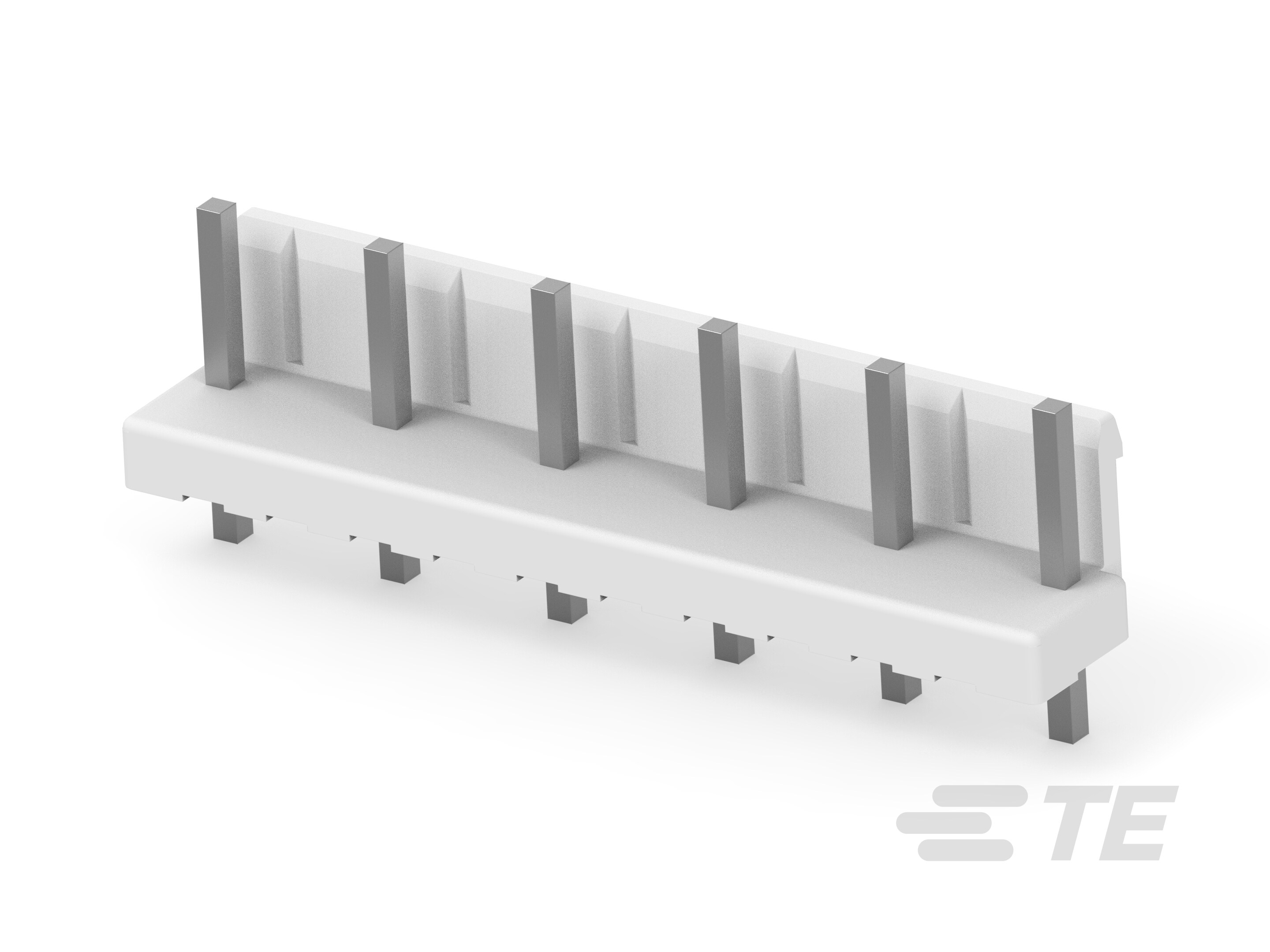

11P Unshroud Header Select Pin,boss,GWT-2384271-6

2375268-6

Active
TE Connectivity AMP Connectors

11P UNSHROUDED HEADER SELECTIVE PIN,NGWT

Find alt
11P Unshroud Header Select Pin,boss,GWT-2384271-6

2375268-6

Active
TE Connectivity AMP Connectors

11P UNSHROUDED HEADER SELECTIVE PIN,NGWT

Find alt

Description

General part information

2375268-6

Housing Assembly, Housing for Male Terminals, Wire-to-Board, 6 Position, 3.96 mm [.156 in] Centerline, Crimp, 1 Row, Natural, Economy Power

Technical Specifications

Parameters and characteristics for this part

Specification2375268-6
Connector TypeHeader
Contact Finish - PostTin
Contact Length - Mating0.303 in
Contact Length - Post0.146 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
Insulation ColorNatural
Insulation Height0.362 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions11
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Overall Contact Length0.567 in
Pitch - Mating0.312 in
ShroudingShrouded - 1 Wall
StyleBoard, Board or Cable
TerminationSolder
Voltage Rating600 V
