0603N1R0AW251
ActivePassive Plus

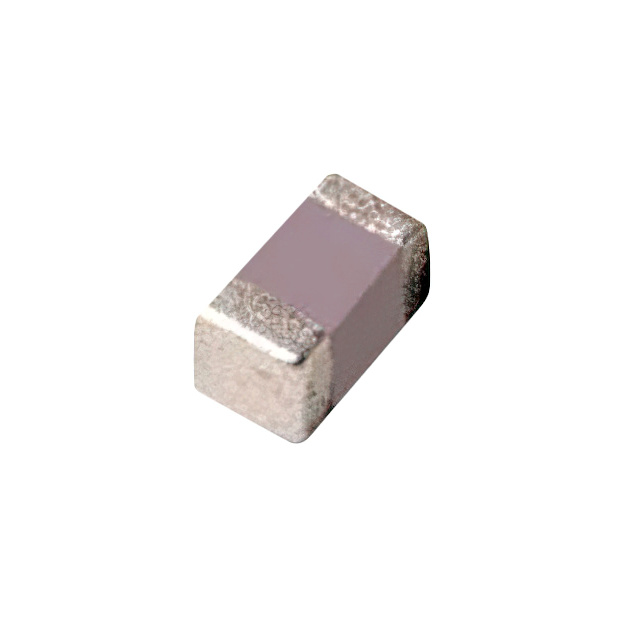

CAP CER 1PF 250V C0G/NP0 0603
0603N1R0AW251
ActivePassive Plus
CAP CER 1PF 250V C0G/NP0 0603
Description
General part information
0603N1R0AW251
1 pF ±0.05pF 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0603N1R0AW251 |
|---|---|
| Applications | RF, Bypass, Decoupling, High Frequency, Microwave |
| Capacitance | 1 pF |
| Features | High Q, Low Loss, Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.062 in |
| Size / Dimension Width | 0.032 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.038 in |
| Tolerance | 0.05 pF |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
