ASTMUPCE-33-16.000MHZ-LJ-E-T3
ObsoleteAbracon LLC
MEMS OSC XO 16.0000MHZ LVCMOS
ASTMUPCE-33-16.000MHZ-LJ-E-T3
ObsoleteAbracon LLC
MEMS OSC XO 16.0000MHZ LVCMOS
Description
General part information
ASTMUPCE-33-16.000MHZ-LJ-E-T3

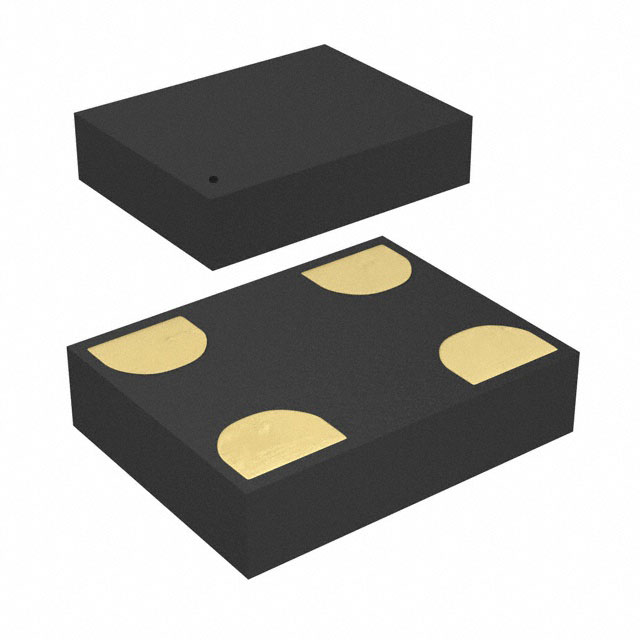

16 MHz XO (Standard) LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASTMUPCE-33-16.000MHZ-LJ-E-T3 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 31 mA |
| Current - Supply (Max) | 36 mA |
| Frequency | 16 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
