B59758B0110A070
ObsoleteEPCOS - TDK Electronics
PTC RESET FUSE 1.0KV RADIAL DISC
B59758B0110A070
ObsoleteEPCOS - TDK Electronics
PTC RESET FUSE 1.0KV RADIAL DISC
Description
General part information
B59758B0110A070

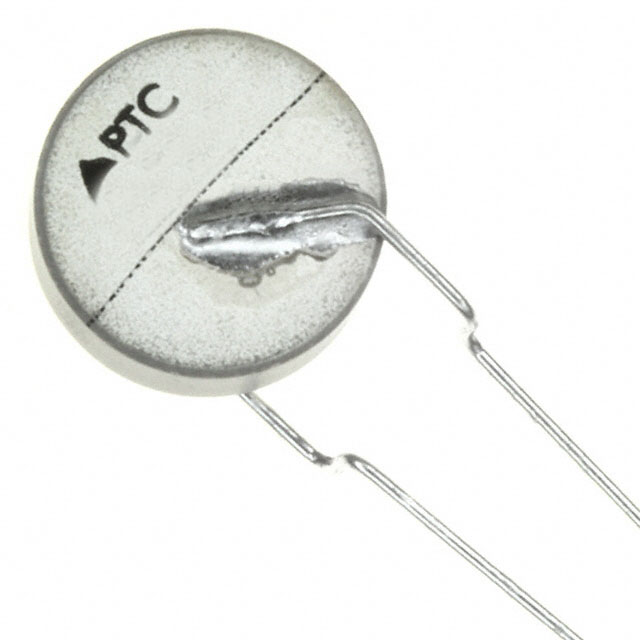

Ceramic PTC Resettable Fuse 1.0kV Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | B59758B0110A070 |
|---|---|
| Approval Agency | UL |
| Current - Max | 500 mA |
| Current - Trip (It) | 17 mA |
| Height - Seated (Max) | 16.51 mm |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 7.5 kOhms |
| Size / Dimension Diameter | 0.492 in |
| Size / Dimension Thickness | 0.276 in |
| Time to Trip | 3 s |
| Type | Ceramic |
| Voltage - Max | 1 kV |
