1906BP18A027001E
ObsoleteJohanson Technology Inc.

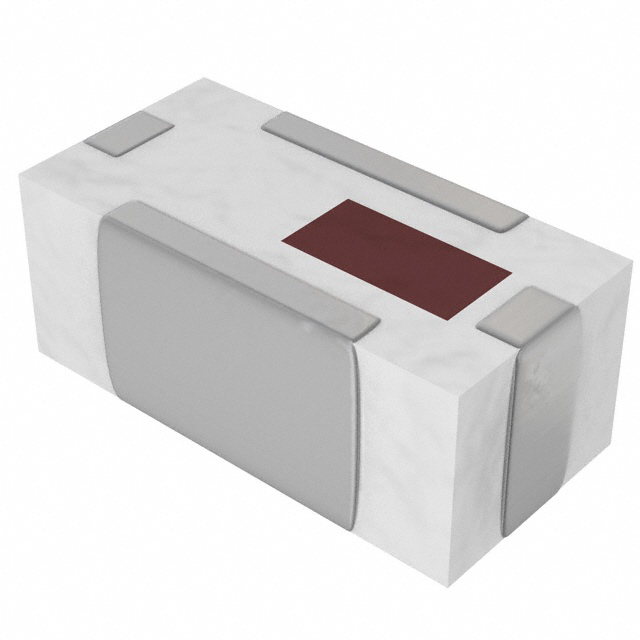

RF FILTER BAND PASS 1.9GHZ 1206
1906BP18A027001E
ObsoleteJohanson Technology Inc.
RF FILTER BAND PASS 1.9GHZ 1206
Description
General part information
1906BP18A027001E
1.9GHz Center Frequency Band Pass RF Filter (Radio Frequency) 27MHz Bandwidth 1.5dB 1206 (3216 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | 1906BP18A027001E |
|---|---|
| Bandwidth | 27 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 1.9 GHz |
| Height (Max) | 0.055 in |
| Insertion Loss | 1.5 dB |
| Mounting Type | Surface Mount |
| Package Name | 1206 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
