9814
ActiveKnowles Syfer
CAP TRIMMER 7-40PF 250V TH
9814
ActiveKnowles Syfer
CAP TRIMMER 7-40PF 250V TH
Description
General part information
9814

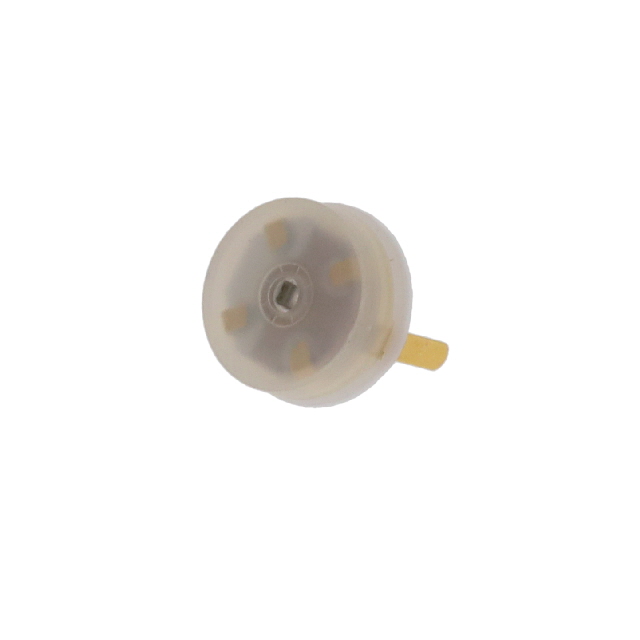

7 ~ 40pF Trimmer Capacitor 250 V Top Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 9814 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 40 pF |
| Capacitance Range (Min) | 7 pF |
| Features | Sealed |
| Height - Seated (Max) | 0.11 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Q | 200 |
| Size / Dimension Diameter | 0.27 in |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
