Description

General part information

T1509034600-000

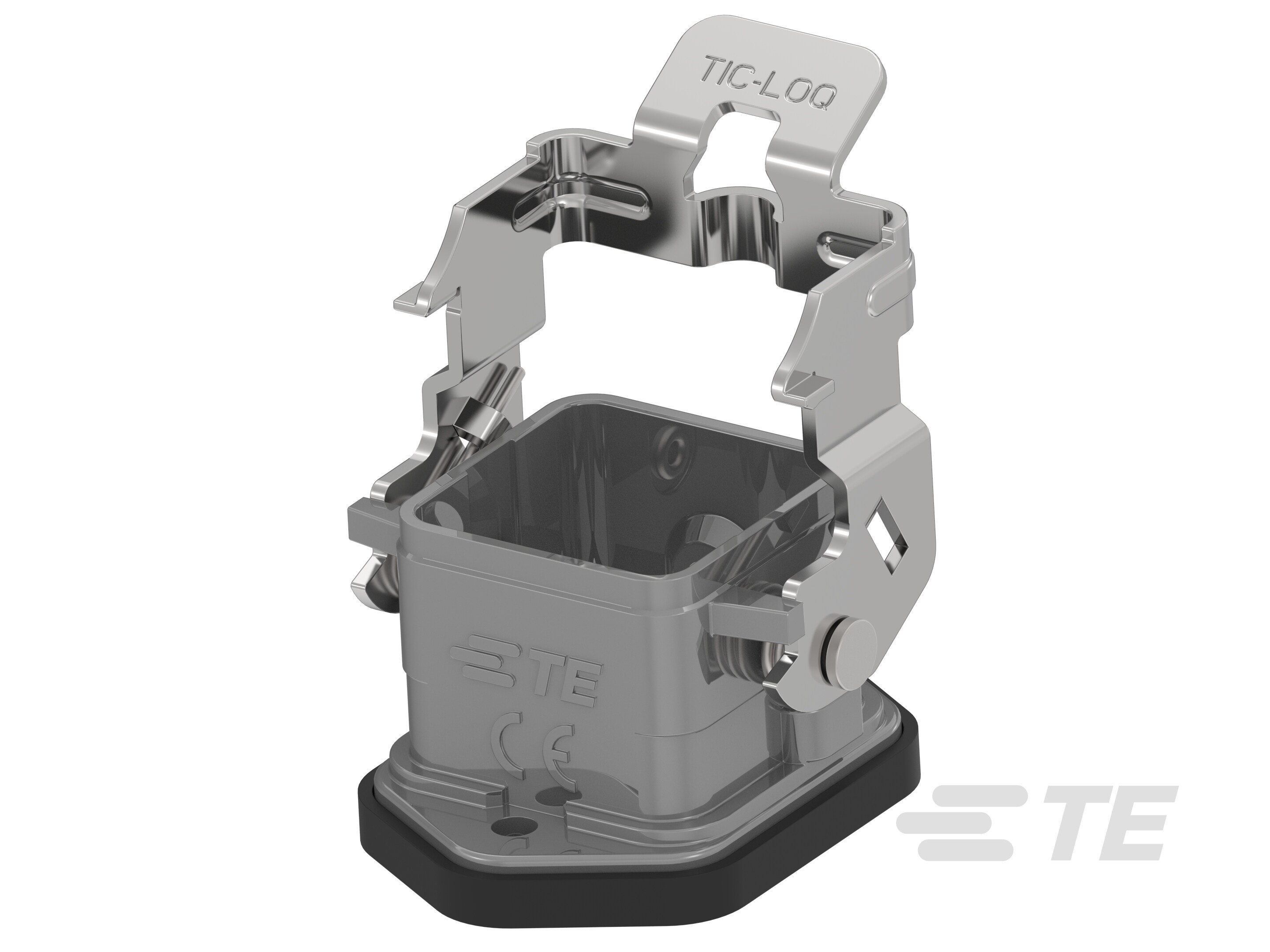

Heavy Duty Connector Base Housing, Bottom Entry, Locking, Sealable

Technical Specifications

Parameters and characteristics for this part

SpecificationT1509034600-000
Connector TypeBase - Panel Mount
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialZinc Alloy, Die Cast
Ingress Protection DescriptionDust Tight, Water Resistant
Ingress Protection IP RatingIP65
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
SizeH3A
StyleBottom Entry
