179467-4
ActiveTE Connectivity AMP Connectors

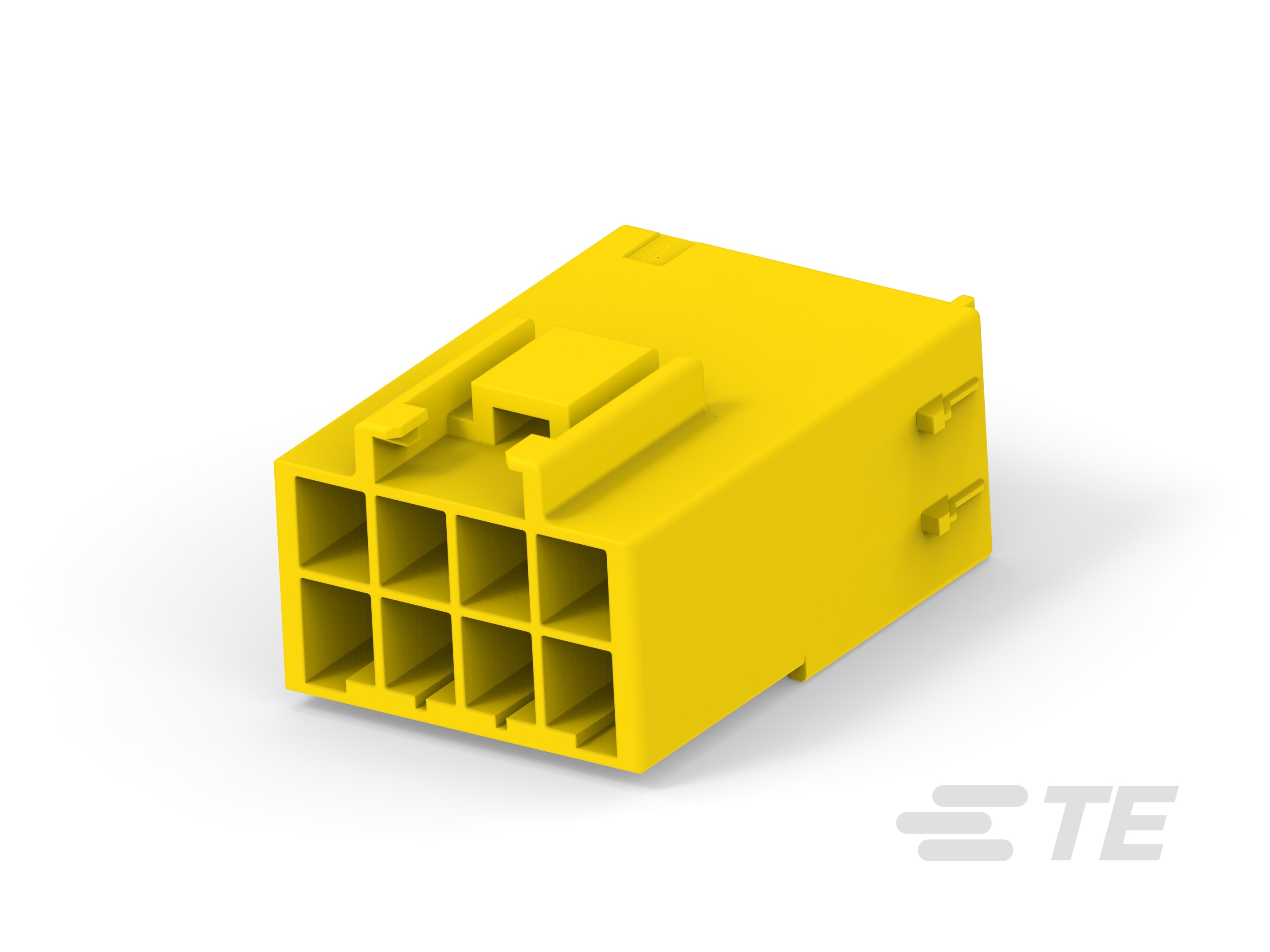

AMP POWER DBL LOCK CAP HSG 8P
179467-4
ActiveTE Connectivity AMP Connectors
AMP POWER DBL LOCK CAP HSG 8P
Description
General part information
179467-4
8 Position, Cap, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.96 mm [.156 in] Centerline, 2 Row, 300 VAC, Wire & Cable, Power, Power Double Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 179467-4 |
|---|---|
| Color | Yellow |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Features | Cap (Cover) |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.156 in |
| Row Spacing | 0.181 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
1773458-5_POWER_DBL_LOCK_(PDL)_CONNECTORS
Datasheet
Crimping AMP Power Double Lock Contact
AMP POWER DOUBLE LOCK CONNECTOR REPORT
AMP POWER DOUBLELOCK CONNECTOR SERIES
SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG
Product Specification - Power Double Lock Connector System
ENG_CD_179467_B4.pdf
179467-4 | Datasheet
