EQH3626E060L100
ActiveMagnetics, a division of Spang & Co.
HIGH FLUX 060 PERM EQ 3626 SIZE
EQH3626E060L100
ActiveMagnetics, a division of Spang & Co.
HIGH FLUX 060 PERM EQ 3626 SIZE
Description
General part information
EQH3626E060L100

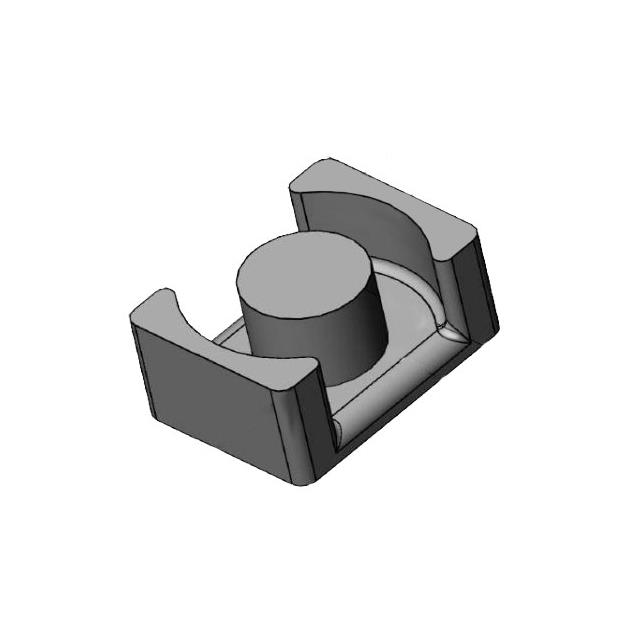

Uncoated High Flux Ferrite Core EQ Type 1.417" (36.00mm) Length 1.024" (26.00mm) Width Diameter 0.394" (10.00mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | EQH3626E060L100 |
|---|---|
| Core Type | EQ |
| Effective Area (Ae) | 181 mm² |
| Effective Length (le) | 65.1 mm |
| Effective Magnetic Volume (Ve) | 11800 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.394 in |
| Inductance Factor (Al) | 224 nH |
| Initial Permeability (µi) | 60 |
| Length | 1.417 in |
| Material | High Flux |
| Tolerance | 8 % |
| Width | 1.024 in |
