XS1M30AB120
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS SERIES, 10 MM, CURRENT OUTPUT, M30, 12 TO 24 V, PRE-WIRED
XS1M30AB120
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS SERIES, 10 MM, CURRENT OUTPUT, M30, 12 TO 24 V, PRE-WIRED
Description
General part information
XS1M30AB120

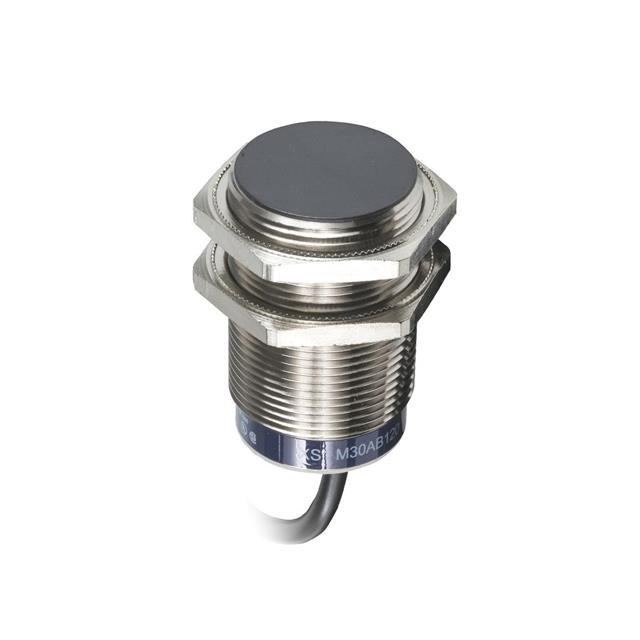

Inductive Proximity Sensor 0.394" (10mm) IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XS1M30AB120 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NC, Analog Current, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
